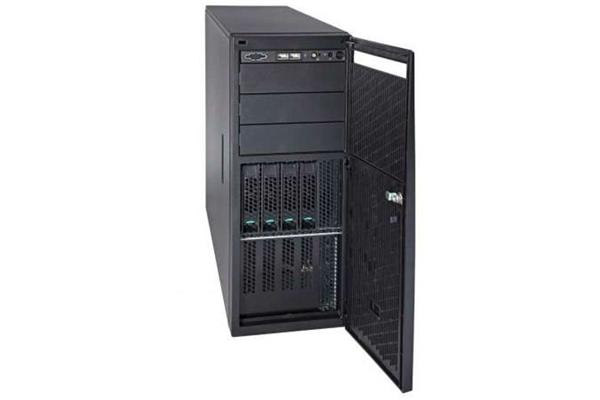

Intel® Workstation System P4304CR2LFGN (Tower /4U, 2xE5-2600, 16xDDR3 RDIMM 1600MHz,4x3.5'' HDD Fixed, 750W

Popis produktu:

Launch Date Q1'12
Status Launched
Expected Discontinuance Q1'15
Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
On-Site Repair Available for Purchase (Select Countries) Yes
Chassis Form Factor 4U Pedestal
Chassis Dimensions 6.81” x 17.24” x 26.9"
Board Form Factor Custom 14.2" x 15"
Rack Rails Included No
Socket Socket R
Target Market Workstation
Rack-Friendly Board No
Power Supply 750W AC, Platinum Efficient
Power Supply Type AC
# of Power Supply 1
Redundant Fans No
Redundant Power Supported; requires 2nd power supply
Heat Sink 2
Heat Sink Included Yes
Included Items Integrated 2S workstation 4U pedestal system including (1) Intel(r) Workstation Board W2600CR2, (4) 3.5" Fixed Drive Carrier, (1) 750W Power Supply (Platinum Efficiency), Non-Redundant Cooling, (2) Active Heat Sink, and (1) air duct.
# of 3.5" Hard Drives 4
3.5" Hard Drive Support Supports 4 fixed 3.5" drives
Intel® Server Management Software Yes
Memory Specifications
Memory Types DDR3 ECC UDIMM 1333, RDIMM 1600, LRDIMM 1333
# of DIMMs 16
Max Memory Size (dependent on memory type) 512 GB
Graphics Specifications
Integrated Graphics Yes
Expansion Options
PCIe x16 Gen 3 4
PCIe x4 Gen 2.x 1
Intel® IO Expansion Module PCIe x8 Gen 3 1
Intel® Internal IO Expansion Module PCIe x8 Gen 3 1
I/O Specifications
# of USB Ports 8
Total # of SATA Ports 10
RAID Configuration up to SW Raid 5 ((LSI + RSTE)
# of Serial Ports 1
Integrated LAN 2x 1GbE
# of LAN Ports 2
Optical Drive Support Yes
Firewire TRUE
Integrated SAS Ports 8
Embedded USB (eUSB) Solid State Drive Option Yes
Package Specifications
Max CPU Configuration 2
Advanced Technologies
Intel® Remote Management Module Support True
Integrated BMC with IPMI IPMI 2.0
Intel® TPM Version Intel® TPM Version 1.2
Intel® Node Manager Yes
Intel® On-Demand Redundant Power Yes
Cennik pri kompletizacii zostavy v ASBISE

SKS_SRVMB1  1.mechanicka montaz+skusobna instalacia software tj.  overenie funkcii vsetkych komponentov update BIOS.....49EUR
SKS_SRVMB2  2.mechanicka montaz+predinstalacia software (zakupeneho unas)+ overenie funkcii vsetkych komponentov update BIOS...79EUR
SKS_SRVMB3  3.mechanicka montaz+predinstalacia software (zakupeneho unas)+ overenie funkcii vsetkych komponentov update BIOS+nastavenie RAID poli tj. finalna uprava .... 110EUR

Stránky o produkte:

http://ark.intel.com/products/56402/Intel-Workstation-System-P4304CR2LFGN

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
