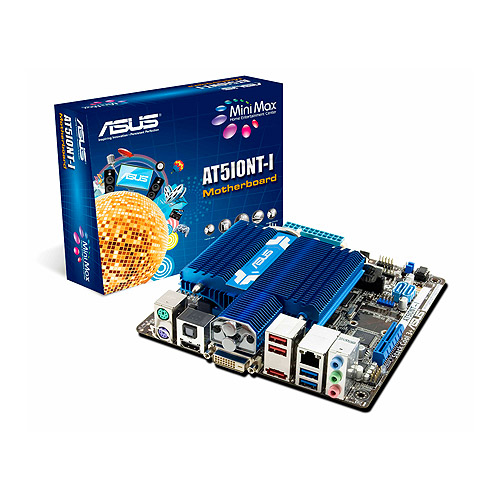

ASUS AT5IONT-I AtomD525 ION DDR3 mITX HDMI DVI eSATA

Popis produktu:

CPU:
Intel® CPU on Board
Integrated dual-core Intel® Atom™ processor D525

Chipset:
Intel® NM10

Memory:
2 x SO DIMM, Max. 4 GB, DDR3 800 Non-ECC,Un-buffered Memory
Single Channel memory architecture
Please refer to www.asus.com or user manual for Memory QVL.

Expansion Slots:
1 x PCIe x4

VGA:
Integrated Next Generation NVIDIA ION graphics processor
Support CUDA technology
Supports DVI with max. resolution up to 1920x1200x32Bppx60Hz
Supports HDMI with max. resolution up to 1920x1080x32Bppx60Hz
Dual Display support
DVI & HDMI
Dedicated video memory 512 MB

Storage:
Southbridge
2 xSATA 3.0 Gb/s ports support AHCI mode

LAN:
PCIe Gb LAN
Audio ALC887 8-Channel support DTS Surround Sensation UltraPC

USB:
Chipset built-in
- 2 x USB 3.0/2.0 ports (back panel)
Chipset built-in
- 4 x USB 2.0/1.1 ports (2 ports at mid-board, 2 ports at back panel)

ASUS Unique Features:
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2
AI NET 2
Stack Cool3+
Home Theater Gate
Express Gate
* The actual boot time is subject to hardware configurations and product models.

Back Panel I/O Ports:
1 x DVI
1 x PS/2 Keyboard
1 x HDMI
1 x PS/2 Mouse
1 x External SATA
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
6 -Channel Audio I/O
2 x USB 2.0
2 x USB 3.0 (compatible with USB 2.0 device)

Internal I/O Connectors:
1 x USB connectors support additional 2 USB ports
1 x Chassis Fan connector & controller
1 x CPU Fan connector
1 x PWR Fan connector
1 x Front Panel connector
1 x High Definition front panel audio connector
1 x 4-pin ATX 12V Power connector
1 x 24-pin ATX Power connector

BIOS:
8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5

Accessories:
User's manual
1 x I/O Shield
2 x SATA cable(s)

Support Disc:
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update

Form Factor:
Mini ITX Form Factor
6.75 inch x 6.75 inch ( 17 cm x 17 cm )

Stránky o produkte:

http://www.asus.com/Motherboards/Intel_CPU_on_Board/AT5IONTI/#overview

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
