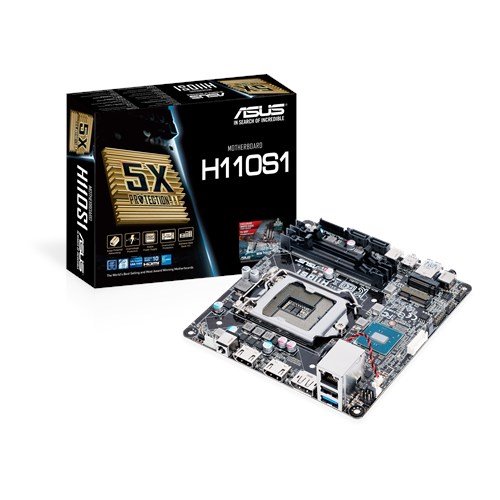

ASUS H110S1/CSM soc.1151 H110M DDR4 mSTX DP HDMI

Popis produktu:

CPU
Intel® for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® H110

Memory
2 x SO-DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic
Integrated Graphics Processor
Multi-VGA output support : Dual HDMI/LVDS/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4906 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 2 displays simultaneously

Storage
Intel® H110 chipset :
1 x M.2 Socket 3, , with M key, type 2280 storage devices support (both SATA & PCIE mode)
2 x SATA 6Gb/s port(s),

LAN
Intel® I219V, 1 x Gigabit LAN

Audio
Realtek® ALC3236 4-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking

USB Ports
Intel® H110 chipset :
1 x USB 3.1 Gen 1 port(s) (USB Type-CTM)
Intel® H110 chipset :
2 x USB 3.1 Gen 1 port(s) (1 at back panel, )
Intel® H110 chipset :
1 x USB 2.0 port(s) (1 at back panel, )

Special Features
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
100% All High-quality Conductive Polymer Capacitors
Media Streamer

Operating System Support
Windows® 10 86x64
Windows® 8.1 86x64
Windows® 7 86x64

Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 1 (blue)
1 x USB 2.0
1 x DC power connector(s)

Internal I/O Ports
1 x M.2 Socket 1 with E key, type 2230 Wi-Fi devices support
1 x M.2 Socket 3 with M key, type 2280 storage devices support (both SATA & PCIE mode)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x SATA power connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x Clear CMOS jumper(s)
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
1 x LVDS connector(s)
1 x 14-1 pin TPM connector
1 x System panel connector

Accessories
User's manual
I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function,F6 Qfan Control

Manageability
WfM 2.0, DMI 3.0, WOL by PME

Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Form Factor
Mini STX Form Factor
5.8 inch x 5.5 inch ( 14.7 cm x 14.0 cm )

Note
*1: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
