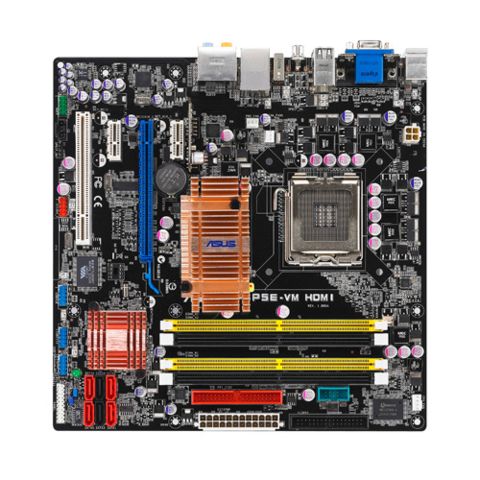

ASUS P5E-VM HDMI soc.775 G35 DDR2 mATX HDMI DVI RAID FW GL

Popis produktu:

CPU:
LGA775 socket for Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® next generation 45nm Multi-Core CPU

Chipset:
Intel® G35 / ICH9R with Intel® Fast Memory Access Technology
Pamäť:
4 x DIMM, max. 8GB, DDR2 800 / 667 MHz, non-ECC, un-buffered memory
Dual channel memory architecture

VGA:
Integrated Intel® Graphics Media Accelerator X3500
Dual VGA output support: HDMI/DVI-D and RGB
Supports RGB with max. resolution 2048 x 1536@75Hz
Supports HDMI with max. resolution 1920 x 1200@60Hz
Supports DVI with max. resolution 1920 x 1200@60Hz
Maximum shared memory of 384 MB
Supports Microsoft® DirectX® 10, OpenGL® 2.0, Pixel Shader 4.0
*The DirectX® 10 driver will be provided by the chipset vendor later.

Storage  Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices

LAN:
Atheros L1 PCI-E Gigabit LAN controllers
PCIe Gb LAN controller

Audio:
Realtek ALC 883, 8-channel High-Definition Audio CODEC

Zadný panel:
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Coaxial)
1 x D-sub Port
1 x HDMI/DVI port
1 x IEEE1394a
1 x RJ45 port
6x USB 2.0/1.1
8-channel Audio I/O

Interné konektory:
1 x PCI-E x16
2 x PCI-E x1
1 x PCI
6 x SATA 3.0 Gb/s ports, Intel Matrix Storage Technology supports RAID 0, 1, 5 and 10, JMicron® JMB368 PATA and SATA controller
1 x UltraDMA 133/100/66 for up to 2 PATA devices
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
1 x 4-pin ATX 12V Power connector

BIOS  8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3

Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE
Accessories I/O Shield

User's manual
1 x Floppy disk drive cable
3 x SATA cables
2 x SATA power cables for 3 devices
1 x HDMI to DVI adapter
I/O Shield
3 in 1 Q-connector

Form Factor  uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x24.4 cm )

Stránky o produkte:

http://www.asus.com/products.aspx?modelmenu=2&model=1912&l1=3&l2=11&l3=584&l4=0

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
