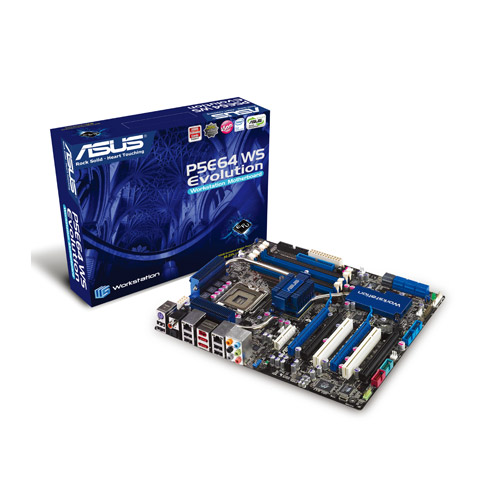

ASUS P5E64 WS EVOLUTION 775/1600 X48 DDR3 4PCIe/10xRS/2GL,TPMs

Popis produktu:

CPU Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU

Chipset Intel® X48 Intel ICH9R

Front Side Bus 1600/1333/1066/800 MHz
Memory  4 x DIMM, Max. 8 GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066/800 Non-ECC,Un-buffered Memory
Expansion Slots  4 x PCIe x16 (@ x16, x16, x4, x4) (Dual PCIe 2.0 x 16)
1 x PCIe x4
2 x PCI 2.2

Storage  Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
Ext PATA and SATA controller
2 xExternal SATA 150/300 (RAID 0,1,10,5)
2 xSATA 150/300 (RAID 0,1,10,5)
1 x ATA 133/100 x

LAN  Marvell 88E8056/88E8001 Dual Gigabit LAN controller

Audio   ADI® AD1988B 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports at back I/O
Support Jack-Sensing, Enumeration, Multi-streaming

USB  12 USB 2.0 ports
Special Features  - AI Gear3 (ASUS EPU)
- AI Slot Detector
- Q-Shield
- Q-Connector
- Fanless Design: Heat-pipe solution
- Fanless Design: Stack Cool 2
- Noise Filter
- AI Audio 2
- MyLogo 2
- CrashFree BIOS 3
- EZ Flash 2
- C.P.R.(CPU Parameter Recall)
- SFS (Stepless Frequency Selection)
- O.C. Profile
ASUS Workstation Special Features - ASUS HE 95
- G.P. Diagnosis Card Bundled
- ASUS SASsaby RAID Card support

Back Panel I/O Ports  1 x PS/2 Keyboard
2 x External SATA
1 x S/PDIF Out (Coaxial + Optical)
1 x IEEE 1394a
2 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O

Internal I/O Connectors  24-pin ATX Power connector
8-pin ATX 12V Power connector
Chassis intrusion
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
PWR fan
IDE connector
Floppy disk drive connector
CD audio in
6 x USB2.0
20-pin Panel connector
1 x IEEE 1394a port
1 x COM port
TPM header
Front panel audio connector

BIOS  16 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
Multi-language BIOS
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE
Accessories  1 x 2-port USB2.0 / 1-port IEEE1394 module
1 x COM port module
Serial ATA signal cable for 8 devices
Serial ATA power cable for 8 devices
1 x Ultra DMA 133/100 cable
1 x Floppy disk driver cable
1 x Q-Shield
3 in 1 Q-connector
1 x G.P. Diagnosis Card
Support Disc ASUS PC Probe II
Anti-virus software (OEM version)
ASUS AI Booster
Adobe Acrobat Reader
Microsoft Direct X ver 9.0C

Form Factor  ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )


ASUS Workstation Exclusive Features

ASUS HE 95
With the whole new power design - HE 95, this motherboard is anle to achieve 95%+ power efficiency in light loading mode and 90%+ in full/heavy loading mode. No software or driver required, the hardware-based HE 95 automatically saves power for users.

ASUS SAS Card Support
This motherboard is fully compatible with ASUS SAS card (the SASsaby card, optional). Faster, safer and more stable, SAS will provide users with a better choice for storage expansion and upgrade needs.
G.P. Diagnosis Card (bundled)
Bundled with the P5E64 WS Professional motherboard, the G.P. Diagnosis card assists users in system checking by effortlessly and quickly providing precise system checks right after they switch on their PCs.

CPU, Chipset and Graphics features

LGA775 Intel® 45nm Processor Ready
This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency.





Intel® X48 Chipset
The Intel® X48 Express Chipset is the latest chipset designed to support 8GB of dual-channel DDR3 1600/1333/1066/800 architecture, 1600/1333/1066/800 FSB (Front Side Bus), dual PCIe 2.0 x 16 graphics and multi-core CPUs. It especially includes Intel® Fast Memory Access technology that significantly optimizes the use of available memory bandwidth and reduces the latency of the memory accesses.

ATI CrossFire Technology
ATI´s CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATI´s Catalyst™ Control Center to rule your CrossFire system.
LGA775 Intel® Core™2 Processor Ready
T
