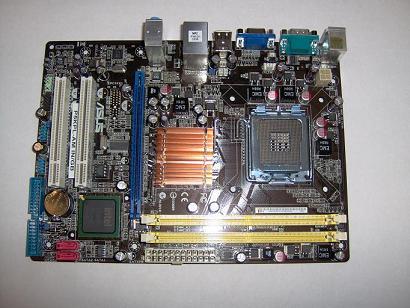

ASUS P5KPL-AM IN/ROEM/SI soc.775 G31 DDR2 mATX L COM

Popis produktu:

CPU:
LGA775 socket for Intel®  Core™2 Quad/Core™2 Extreme/Core™2 DUO/Pentium®D/Pentium®4/Celeron® E1000 Series and Celeron 400 Series Processors
Support Intel® 45nm CPU
Intel® hyper-Threading Technology ready
Supports Enhanced Intel SpeedStep® Technology (EIST)

Chipset:  Intel® G31, Intel® ICH7

Front Side Bus: 1600/1333/1066/800 MHz

Memory:
Dual channel memory architecture
2x240-pin DIMM socket supports unbuffered non-ECC 4 GB 1066/800/667 MHz DDR2 memory modules

Expansion Slots:
1x PCI Express x16 slots
2x PCI slots

VGA: Integrated Gfx (Intel GMA3100) in North bridge supports - maximum resolution 2048 x 1536 @ 75 Hz

Storage:
Southbridge Intel® ICH7 supports
- 1 x UltraDMA 100/66/33 HDD ,
- 2 x SATA 150/300 ports

LAN: Realtek® RTL8131, 10/100 LAN

Audio: VT1705 6-CH high-definition Audio CODEC

USB: max. 8xUSB 2.0 (4 ports at mid-board, 4 ports at back panel)

Features: ASUS CrashFree BIOS 3, ASUS Q-Fan, ASUS EZ Flash 2

Rear panel:
1x PS/2 keyboard port
1x PS/2 mouse port
1x VGA port
1x LAN (R-J45)port
1x USB 2.0 port
1x COM port
6-channel audio I/O port

Internal connectors:
1x high definition front panel audio connector
2x USB 2.0 connectors supports additional 4 USB ports
2x Serial ATA connectors
1x CPU fan connector
1x IDE connector
1x 24-pin EATXPWRR 12 V power connector
1x 4-pin ATX 12 V power connector
1x System Panel connector

BIOS features: 8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5
Manageability: WOL, PXE, RPL, WOR, PME Wake Up
Support CD contents: Drivers, ASUS PC Probe II, ASUS Update untility

Accessories
1x Serial ATA cable
1x Ultra ATA66 cable
I/O shield
user manual

Form factor: mATX factor
dimension: 24,4 x 17,8 cm
