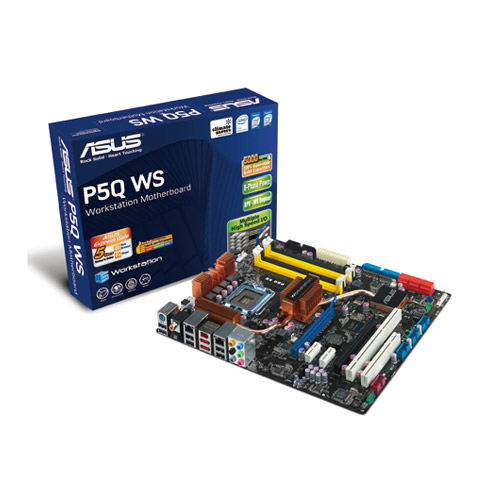

ASUS P5Q WS soc.775 P45 DDR2 ATX 2xPCIe RAID FW 2xeSATA 2xGL

Popis produktu:

CPU:
Intel® Socket 775 Intel® Core™2 Extreme/Core™2 Quad/ Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Intel® EM64T / EIST / Hyper-Threading Technology

Chipset:
Intel® P45 / ICH10R

Front Side Bus:
1600/1333/1066/800 MHz

Memory:
4 x DIMM, Max. 16 GB, DDR2 1200/1066/800/667 Non-ECC,Un-buffered Memory

Expansion Slots:
2 x PCIe 2.0 x16 (@ x16, x0, or x8, x8)
2 x PCIe x1
1 x PCI 2.2
1 x PCI-X

Storage:
Southbridge
- 6 x SATA 150/300 Support RAID 0,1,5,10
x Marvell 88SE6121 Ext SATA controller
- 2 x eSATA 150/300 (RAID 0,1)

LAN:
Realtek 2 x 8111C Dual Gigabit LAN
Support Teaming Technology

Audio:
RealTek ALC1200 8 -Channel Azalia Audio codecs
Multi-Streaming
Jack-Detection
Jack-Retasking
S/PDIF Out interface

USB:
12 USB 2.0 ports

ASUS Workstation Special Features:
ASUS EPU - WS Engine
AI Nap
ASUS MyLogo2
ASUS CrashFree BIOS3
ASUS C.P.R.
Fan Xpert
Express Gate
AI Booster
ASUS SASsaby Cards support

Back Panel I/O Ports:
1 x S/PDIF Out (Coaxial + Optical)
1 x IEEE 1394a
2 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard/Mouse

Internal I/O Connectors:
24-pin ATX Power connector
8-pin ATX +12V Power connector
Chassis intrusion
CPU fan with PWM control
Chassis fan1 with Q-fan control
Chassis fan2 with Q-fan control
PWR fan
IDE connector
Floppy disk drive connector
CD audio in
6 x USB2.0
20-pin Panel connector
1 x IEEE 1394a port
TPM header
Front panel connector

BIOS:
8 Mb Flash ROM
DMI v2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS v2.4
ACPI 2.0a
Green
ASUS EZ Flash 2
ASUS CrashFree BIOS 3

Manageability:
WOL/WOR by PME,WOR by PME,Chasis Intrusion,AI NET2 BIOS flash utility under DOS
Support Disc ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
ASUS AI Booster
Adobe Acrobat Reader
Microsoft Direct X ver 9.0C

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )

Stránky o produkte:

http://www.asus.cz/product.aspx?P_ID=TwUUKGVrRqx5nru3

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
