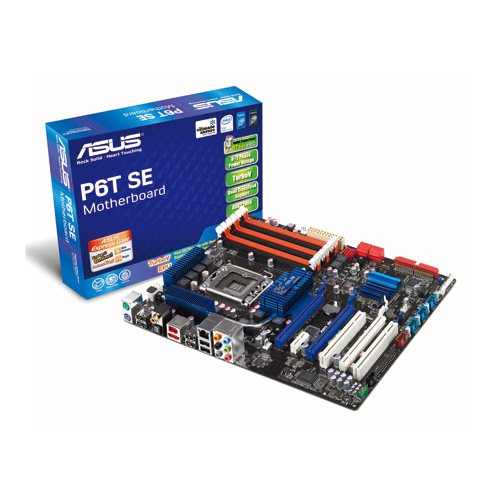

ASUS P6T SE soc.1366 X58 DDR3 ATX 3xPCIe RAID FW eSATA GL

Popis produktu:

CPU:
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed Technology

Chipset:
Intel® X58 / ICH10R

System Bus:
Up to 6400 MT/s ; Intel® QuickPath Interconnection

Memory:
6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333/1066 Non-ECC,Un-buffered Memory

Expansion Slots:
3 x PCIe 2.0 x16 (at x16/x16/x4 mode)
1 x PCIe x1
2 x PCI

Multi-GPU Support:
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage  Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology supports Support RAID 0,1,5,10
JMicron® JMB363 PATA and SATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA 3Gb/s port (SATA On-the-Go)

LAN:
Realtek® 8111C PCIe Gigabit LAN controller featuring AI NET2

Special Features:
Multi-language BIOS
ASUS MyLogo 2

Back Panel I/O Ports:
1 x External SATA
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x PS/2 Keyboard (Purple)
1 x PS/2 mouse port (Green)
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output

Internal I/O Connectors:
3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector

Front panel audio connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
1 x Power on switch

BIOS:
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Form Factor:
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Stránky o produkte:

http://www.asus.cz/product.aspx?P_ID=t4yhK6y9W9o7iQ9E

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
