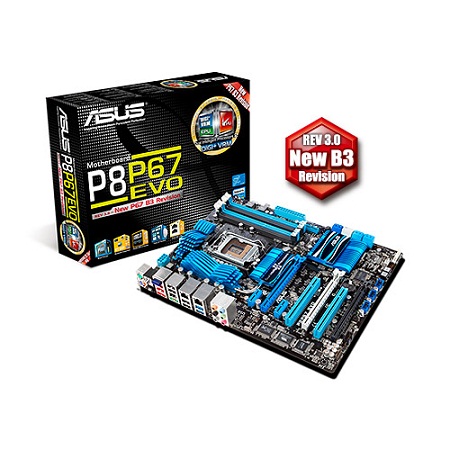

ASUS P8P67 EVO soc.1155 P67 DDR3 ATX 3xPCIe RAID SATA6 FW 2xeSATA GL

Popis produktu:

CPU:
LGA1155 socket for Intel® 2nd Generation Core™ i7/ Core™ i5/ Core™ i3 Processors
Supports 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel CPU support list

Chipset:
Intel® P67 Express Chipset

Memory:
4 x DIMM, max. 32GB*, DDR3 2200(O.C.)**/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* The Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
** Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.
***Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
****Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lists).

Expansion Slots:
2 x PCI Express 2.0 x16 slots (single at x16 or dual at x8 / x8 mode)
1 x PCI Express 2.0 x16 slot* [Black] (max. at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCI Express 2.0 x1 slots
2 x PCI slots
*The PCIe x16_3 slot shares bandwith with the PCIe x1_1 slot, PCIe x1_2 slot, ESATA3G & PESATA3G and USB3_34. The PCIe x16_3 runs at x1 mode by default for system resource optimization.

Multi-GPU support:
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports ATI® Quad-GPU CrossFireX™ Technology

Storage:
Intel® P67 Express Chipset
- 2 x SATA 6.0 Gb/s ports (gray)
- 4 x SATA 3.0 Gb/s ports (blue)
- Intel® Rapid Storage Technology supports  RAID 0, 1, 5 and 10
Marvell® PCIe 9120 SATA 6Gb/s controller:
 - 2 x SATA 6.0 Gb/s ports (navy blue)
JMicron® JMB362 SATA controller:
 - 2 x eSATA 3Gb/s port (1 x Power eSATA)
*These SATA ports are for data hard drives only. ATAPI devices are not supported.

LAN:
Dual Gigabit LAN controllers -802.3az Energy Efficient Ethernet (EEE) appliance
"Intel® 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
"Realtek® 8110SC Gigabit LAN controller

BlueTooth:
Bluetooth v2.1 + EDR
ASUS BT GO! Utility

Audio:
Realtek® ALC892 8-Channel High Definition Audio CODEC
- Absolute Pitch 192khz/24bit True BD Lossless Sound
- BD Audio Layer Content Protection
- DTS Surround Sensation UltraPC
- Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O

IEEE 1394:
VIA® 6308P controller supports 2 x IEEE 1394a ports(one at mid-board; one at back panel)

USB:
2 x NEC USB 3.0 controllers
- 2 x USB 3.0 ports at mid-board for front panel support
- 2 x USB 3.0 ports at back panel (blue)
Intel® P67 Express Chipset
- 12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features:
ASUS Dual Intelligent Processors 2 with DIGI+ VRM:
ASUS EPU
- EPU, EPU switch
ASUS TPU
- Auto Tuning, TurboV, TPU switch
ASUS Digital Power Design
- Industry leading Digital 12+2 Phase Power Design
- ASUS DIGI+ VRM Utility
ASUS BT GO! (Bluetooth)
- Folder Sync, BT Transfer, Shot & Send, BT to Net, Music Player, Personal Manager, BT Turbo Remote
ASUS Exclusive Features
- MemOK!
- AI Suite II
- Anti Surge
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
- AI Charger
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heat-pipe solution
- ASUS Fan Xpert
ASUS EZ DIY
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Slot
ASUS Q-DIMM

ASUS Exclusive Overclocking Features
Precision Tweaker 2:
 - vCore: Adjustable CPU voltage at 0.005V increment
 - vCCIO: Adjustable I/O voltage at 0.00625V increment
 - vCCSA: 144-step system agent voltage control
- vDRAM Bus: 160-step Memory voltage control
 - vPCH: 90-step Chipset voltage control
 - vCPU_PLL: 160-step CPU & PCH PLL voltage control
SFS (Stepless Frequency Selection)
 - BCLK/PEG frequency tuning from 80MHz up to 300MHz at 0.1MHz increment
Overclocking Protection:
 - ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports:
1 x PS/2 mouse port (green)
1 x PS/2 keyboard port (purple)
1 x Coaxial S/PDIF Output
1 x Optical S/PDIF Output
1 x Bluetooth module
2 x eSATA ports (1 x Power eSATA)
1 x IEEE1394a port
2 x LAN (RJ45) ports (1 x Intel® LAN)
2 x USB 3.0/2.0 ports (blue)
6 x USB 2.0/1.1 ports
1 x Clear CMOS switch
8-channel Audio I/O

Internal I/O Connectors:
1 x USB 3.0/2.0 connectors support additional 2 USB ports (19-pin)
3 x USB 2.0/1/1 connectors support additional 6 USB ports
4 x SATA 6.0Gb/s connectors ( 2 x gray; 2 x navy blue)
4 x SATA 3.0Gb/s connectors (blue)
1 x CPU Fan connector (4-pin)
2 x Chassis Fan connectors (1 x 4-pin; 1 x 3-pin)
1 x Power Fan connector (1 x 3-pin)
1 x IEEE1394a connector
Front panel audio connector
1 x S/PDIF Out Header
24-pin EATX Power connector
8-pin EATX 12V Power connector
System Panel(Q-Connector)
1 x MemOK! Button
1 x EPU switch
1 x TPU switch
1 x Power on switch
1 x Reset switch

BIOS:
32 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2,  ASUS CrashFree BIOS 3

Manageability:
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Accessories:
1 x ASUS USB 3.0 Bracket
2 x Serial ATA 6.0Gb/s cables
2 x Serial ATA 3.0Gb/s cables
1 x ASUS SLI bridge connector
ASUS Q-Shield
2 in 1 Q-connector
Support DVD
User's manual

Support DVD
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version)

Form Factor:
ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)

Stránky o produkte:

http://www.asus.com/product.aspx?P_ID=erWGi4vbeZa8oxg8

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
