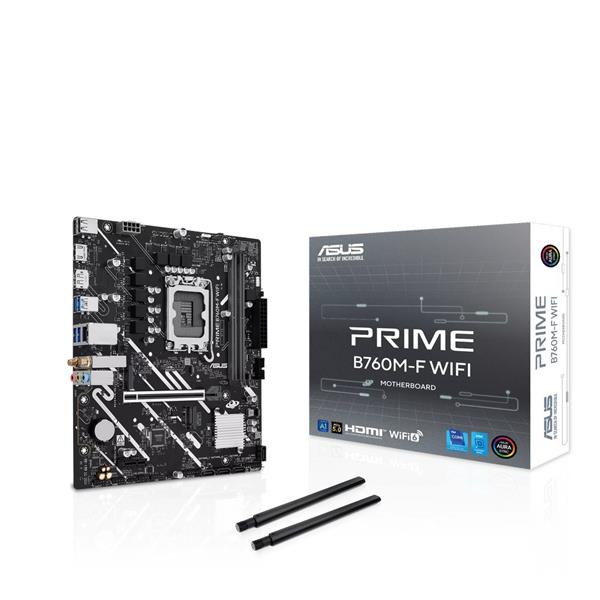

ASUS PRIME B760M-F WIFI soc 1700 DDR5 mATX HDMI DP

Popis produktu:

ASUS PRIME B760M-F WIFI, an Intel® B760 LGA 1700 micro-ATX motherboard with PCIe 5.0, two PCIe 4.0 M.2 slots, DDR5, WiFi 6, Realtek 1Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, front USB 5Gbps ports, Aura Sync
Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 5.0, two PCIe 4.0 M.2 slots, Realtek 1Gb Ethernet and front USB 5Gbps support
Comprehensive Cooling: PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable RGB Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardwares
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Model
PRIME B760M-F WIFI

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® B760 Chipset

Memory
2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@30Hz as specified in HDMI 1.4.

Expansion Slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th  & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band

Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

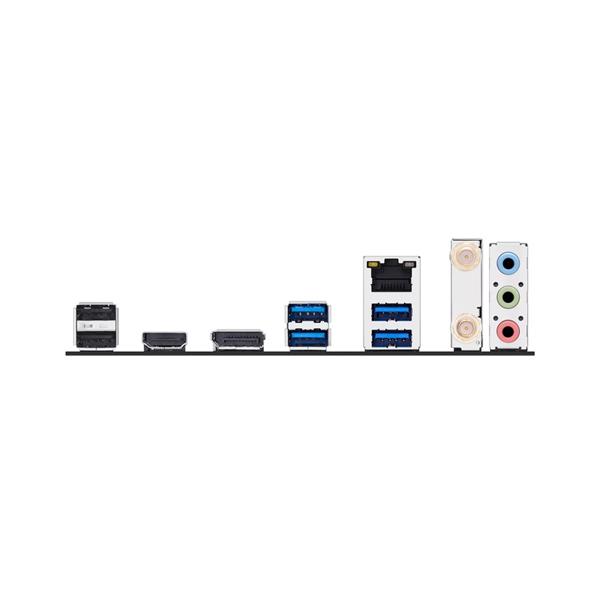

Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
2 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Addressable RGB Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS DriverHub
-ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.

BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
2 x M.2 anchors
Documentation
1 x Quick start guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Stránky o produkte:

https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-f-wifi/

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
