ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT








  • ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT
  • ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT
  • ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT
  • ASUS ROG CROSSHAIR VIII DARK HERO soc.AM4 X570 DDR4 ATX M.2 RAID WIFI BT









Záruka:
36 Mes.
Kód:
ASUSROGCROSSHAIRVIIIDARKHERO
Part No.:
90MB1760-M0EAY0
EAN:
4718017961615
Výrobca:

ASUS















  •
  •


Podrobnosti o produkte





Popis produktu:

ROG Crosshair VIII Dark Hero
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages, OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, USB 3.2, SATA, M.2 and Aura Sync RGB lighting

AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
Comprehensive thermal design: Passive chipset heatsink, M.2 aluminum heatsinks and ROG Water Cooling Zone.
Robust power delivery: Designed power solution 14+2 TI power stages rated for 90A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst VI software.
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.

CPU
* Refer to www.asus.com for CPU support list
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Chipset
AMD X570

Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
AMD Ryzen™ 4000 G-Series Desktop Processors
AMD RyzenTM 2000 Series Processors
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Multi-GPU Support
Supports NVIDIA 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX™ Technology
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>
AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors

Expansion Slots
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
AMD RyzenTM 4000 G-Series / 2000 Series Processors
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors

Storage
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :

LAN
Intel® I211-AT
Realtek® RTL8125-CG 2.5G LAN
ASUS LANGuard

Wireless Data Network
Intel® Wi-Fi 6 AX200
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface

Bluetooth
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback

Audio Feature :
- SupremeFX Shielding™ Technology
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Audio Cover
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Unique de-pop circuit
- Power pre-regulator: Reduces power input noise to ensure consistent performance
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports
4 x USB 3.2 Gen 2 port(s)
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
6 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors :
AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors :

Special Features
AURA :
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS EZ DIY :
- ASUS USB BIOS FlashBack™
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

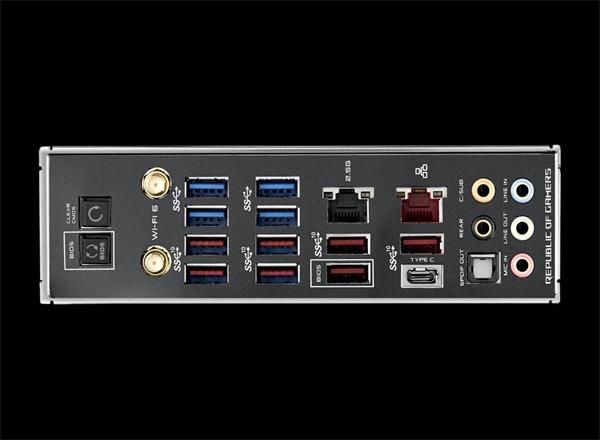

Back I/O Ports
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
1 x BIOS FlashBack™ Button(s)
1 x Anti-surge 2.5G LAN (RJ45) port
Anti-surge LAN (RJ45) port

Internal I/O Ports
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
2 x M.2 Socket 3
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)

Accessories
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG big sticker
1 x Q-Connector
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x ROG Thank you card
1  x M.2 SSD screw package(s)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability
WOL, PXE

Operating System
Windows® 10 64-bit
Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )



Stránky o produkte:

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-viii-dark-hero-model/


Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.









Parametre





Základné parametre
Určenie:  Pre stolné počítače, Herná
Gaming:  Áno
Formát:  ATX

Procesor
CPU Socket:  Socket AM4
Označenie chipsetu:  AMD X570 Chipset

Grafická karta
Podpora integrovanej grafiky:  Nie

Pamäť
Typ pamäte:  DDR4
Počet slotov RAM:
Maximálna rozšíriteľnosť RAM :  128 GB

Interné rozhrania
PCI Express x16:
M.2 slot:
Podpora RAID:  0, 1 ,10

Backplane
USB 3:  12
USB3 (Type-C):
DVI-D:
D-Sub (VGA):
HDMI:
DisplayPort:
RJ-45:

Komunikačné rozhrania
LAN (RJ-45):  2,5Gb
Wifi:  802.11 a/b/g/n/ac/ax
Bluetooth:  Áno
