Produkt je vyradený! Produkt už nie je v našej ponuke.
Kontaktujte, prosím, manažéra produktu:

Ing. Radoslav Tresa
[email protected]

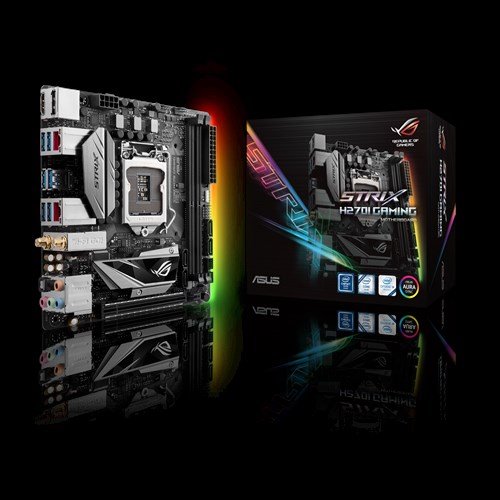

ASUS ROG STRIX H270I GAMING soc.1151 H270 DDR4 mITX WL BT HDMI DP

Záruka:

36 Mes.

Kód:

ASUSROG STRIX H270I GAMING

Part No.:

90MB0U10-M0EAY0

EAN:

4712900677041

Výrobca:

ASUS

GPSR

Kontakt:
ASUS COMPUTER GmbH
Harkortstrasse 21-23, 40880 Ratingen, Germany
[email protected]

Podrobnosti o produkte

Popis produktu:

Herná základná doska ROG Strix H270 formátu mini-ITX obsahuje dvojposchodový ventilátor, osvetlenie Aura Sync RGB LED, duálnu LAN, 802.11ac Wi-Fi, duálnu M.2 a SATA 6Gb/s

Nástupca herných základných dosiek Pro Gaming
Pätica LGA1151 pre siedmu a šiestu generáciu desktopových procesorov Intel® Core™
Dvojposchodový dizajn ventilátoru PCH a M.2 pre optimálny odvod tepla a skvelý herný výkon
Osvetlenie Aura Sync RGB LED a 4-pinové konektory Aura RGB pre dokonalú upravitelnosť
ROG SupremeFX audio — Prepracované audio prvky s duálnymi slúchadlovými zosilňovačmi, vylepšený nástroj Sonic Studio III a Sonic Radar III
Najlepšie herné pripojenie: Duálna LAN (Intel® a Realtek®), 2x2 802.11ac MU-MIMO Wi-Fi, LANGuard a technológia GameFirst
Konektivita pripravená pre budúce generácie — Duálne sloty M.2 pre rozsah až 32Gb/s PCIe, USB konektor Typu C na prednom panely a čítačka pamäte Intel® Optane™
Patentované riešenie ASUS SafeSlot pre lepšiu retenciu PCIe a odolnosť

Procesor
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Čipová sada
Intel® H270

Pamäť
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Grafika
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Rozširujúce zásuvky
1 x PCIe 3.0/2.0 x16

Úložný priestor
Intel® H270 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology 15 support*1
4 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready *2

LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Realtek® RTL8111H, 1 x Gigabit LAN
Anti-surge LANGuard
ROG GameFirst IV

Bezdrôtová dátová sieť
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO

Bluetooth
Bluetooth V4.1*3

Zvuk
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *4
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III

Zásuvky USB
Intel® H270 Chipset :
8 x USB 3.1 Gen 1 port(s) (6 at back panel, +blue, 2 at mid-board)

Funkcie pretaktovania
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Špeciálne funkcie
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM

Zadné vstupné a výstupné porty
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Wi-Fi antenna port(s)

Interné vstupy a výstupy
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

Príslušenstvo
User's manual
M.2 2242 mounting kit
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x pack of cable tie
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)
1 x Panel cable

BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.

Operačný systém
Windows® 10 64-bit
Windows® 8.1 64-bit *5
Windows® 7 32-bit *5
Windows® 7 64-bit *5

Formát
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Poznámka
* For a 2242 storage device, use the bundled 2242 mounting kit.
*1 This function will work depending on the CPU installed.
*2 Intel® OptaneTM Technology is only supported when using 7th Generation Intel® Processors. Before using Intel® OptaneTM memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*3 Support for the Bluetooth specification depends on the Windows version. Windows® 7/8.1 support up to Bluetooth 4.0.
*4 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio and due to
Windows 7 limitations, 32-Bit playback is unavailable for Windows 7.
*5 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors

Zaradenie produktu

ABC
Základné dosky

Stránky o produkte:

https://www.asus.com/sk/ROG-Republic-Of-Gamers/ROG-STRIX-H270I-GAMING/overview/

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.

Parametre

Základné parametre
Určenie:	Pre stolné počítače, Herná
Gaming:	Áno
Formát:	Mini-ITX
Procesor
CPU Socket:	Socket 1151
Označenie chipsetu:	Intel H270 Chipset
Grafická karta
Podpora integrovanej grafiky:	Áno
Pamäť
Typ pamäte:	DDR4
Počet slotov RAM:	2
Maximálna rozšíriteľnosť RAM :	32 GB
Backplane
DVI-D:	0
D-Sub (VGA):	0
HDMI:	1
DisplayPort:	1
Komunikačné rozhrania
LAN (RJ-45):	10/100/1000
Záruka
Záruka zákazník s IČO / Konečný spotrebiteľ:	36/36M
