Produkt je vyradený!  Produkt už nie je v našej ponuke.
Kontaktujte, prosím, manažéra produktu:

Ivan Slušný
[email protected]

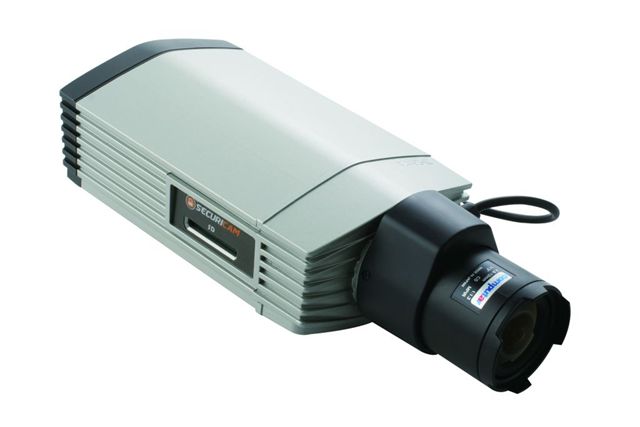

D-Link DCS-3710 Network Camera WDR, Day&Night, IR Filter, 3GP, PoE








  • D-Link DCS-3710 Network Camera WDR, Day&Night, IR Filter, 3GP, PoE









Záruka:
24 Mes.
Kód:
SKDLNKDCS-3710
Part No.:
DCS-3710/E
EAN:
790069329739
Výrobca:

D-Link















  •
  •


Podrobnosti o produkte




Datasheet

Popis produktu:

•    1/3” Megapixel WDR Progressive Scan CMOS sensor
•    Wide Dynamic Range (WDR) technology, for clear images in strong backlight
•    Megapixel vari-focal auto iris lens
•    Built-in IR-Cut Removable (ICR) filter, for enhanced colour rendering in the day and good results in low light conditions
•    Built-in 802.3af Power over Ethernet (PoE) for flexible placement
•    3G mobile video, for live video streams on a 3G mobile phone or PDA
•    Simultaneous Motion JPEG and MPEG-4 streaming
•    Supports 2-way audio*
•    Digital I/O for connection to sensors and alarms
•    RS-485 port for connection to an external Pan/Tilt device
•    Supports HTTPS streaming
•    Lowest power consumption in its class
•    SD card slot accepting both SD 1.1 and SDHC 2.0 storage cards
•    Direct recording to a NAS box or Network Video Recorder
•    Free D-ViewCam software included
*  requires connection to external speaker and microphone

Camera
•    Sony 1/3” Megapixel WDR Progressive Scan CMOS sensor
•    Computar Megapixel Vari-Focal Auto Iris lens: 2.8~12 mm, F1.3
•    Built-in IR-Cut Removable (ICR) filter
•    Minimum illumination: Color: 0.3 Lux, B&W: 0.02 Lux
•    RS-485 interface for connection to an external Pan/Tilt device
•    Digital I/O support for sensors and alarms
•    Up to 30 frames per second

Network
•    1 10/100Base-TX Ethernet port
•    IEEE 802.3af Power over Ethernet (PoE) support
•    Dynamic DNS support
•    Web-based configuration

Video
•    Motion JPEG / MPEG-4 dual-format compression
•    Up to 3 simultaneous video profiles
•    JPEG for still image
•    Adjustable image size and quality

Audio
•    External microphone input
•    External speaker output

Monitoring and recording
•    Live video streams from a 3G mobile phone or PDA
•    SD Card Slot
•    Direct recording to a NAS device (no software required)
•    3 configurable privacy masks
•    Support for motion detection
•    Remote management/control of up to 32 cameras via D-ViewCam software

Power consumption
•    Ca 2 W in normal operation, lowest in its class


Zaradenie produktu



Stránky o produkte:

http://www.dlink.cz/cs/Satellite?c=Product_C&childpagename=DLinkEurope-CZ%2FDLProductCarou


Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.









Parametre





Základné parametre
Prevedenie:  Indoor
Typ kamery:  Statická
Horizontálny uhol záberu:  0° - 65°
Max. rozlíšenie:  1 Mpix (0,9 - 1,9 Mpix)
IR prisvietenie:  Áno
Kompresia:  MJPEG
WiFi:  Nie
PoE:  Áno








Súvisiace dokumenty




Datasheet:  DCS-3710_Datasheet.pdf
