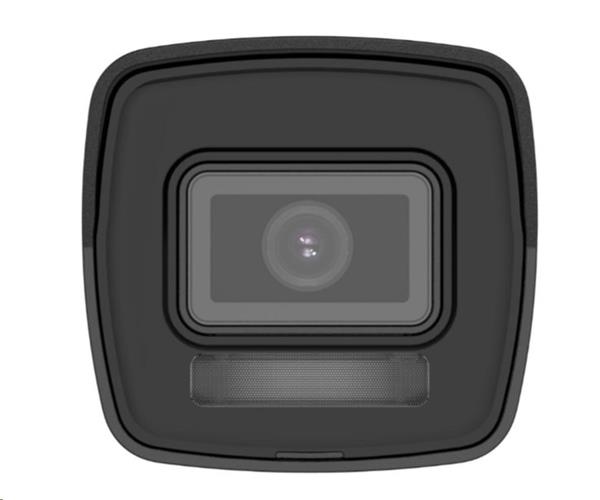

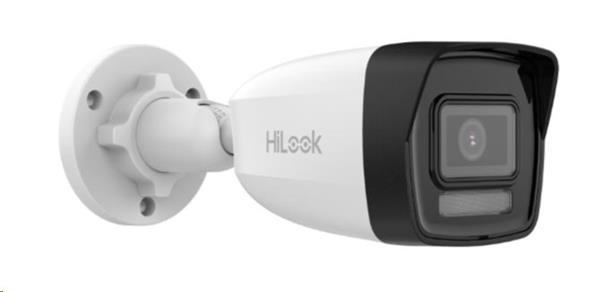

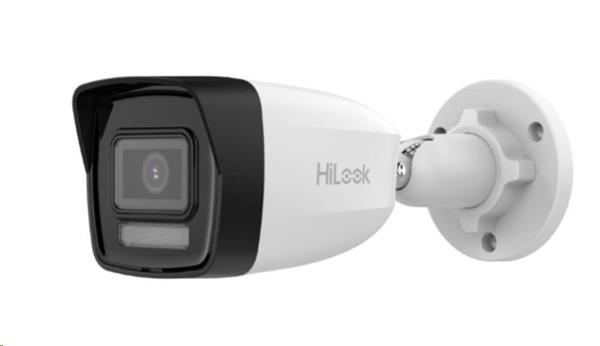

HiLook IPC-B180HA-LU(2.8mm) - "1/3"" Progressive CMOS, ICR, 3840 × 2160: 12.5fps(P)/15fps(N), H.265+/H.265/H.264+&H.264,

Popis produktu:

Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°

4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°

Lens Mount
M12
Iris Type
Fixed
Aperture
F2.0
DORI
DORI
2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz:

12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user

Client
iVMS-4200,HiLookVision
Web Browser
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR)
120 dB
SNR
? 52 dB
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP,send email,notify surveillance center,trigger capture
General
Power
12 VDC ± 25%, 0.41 A, max. 5 W,O5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W

Material
Metal & Plastic
Dimension
184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7")
Package Dimension
216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
Approx. 270 g (0.6 lb.)
With Package Weight
Approx. 481 g (1.1 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7

Safety
CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection
IP67: IEC 60529-2013

Stránky o produkte:

https://www.hilooksecurity.com/hilook-europe/products/hilook-ip-products/Network-Cameras/V

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
