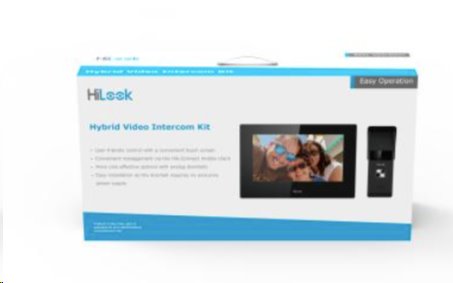

HiLook VI-K23P - Interkom KIT

Popis produktu:

Door station/Video parameters
Resolution
1920 x 1080
FOV
Horizontal: 66.2°,Vertical: 37.2°
Door station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Door station/Device interfaces
I/O output
1 relay output
Four-wire
1 for 4-wire interface
Door station/General
Power supply
12 VDC
Power consumption
Max. 5 W
Working temperature
-10° C to 55° C (14° F to 131° F)
Working humidity
10% to 90%
Dimensions
135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
Indoor station/System parameters
Operation system
Embedded Linux operation system
RAM
128 MB
ROM
32 MB
Indoor station/Display parameters
Size
7-inch colorful TFT screen
Operation method
Capacitive touch screen
Type
Colorful TFT screen
Resolution
1024 × 600
Indoor station/Video parameter
Resolution
/
Lens
/
WDR
/
FOV
/
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio compression Rate
64 Kps
Audio compression standard
G.711 U G.711 A
Volume adjustment
Adjustable
Audio quality
Noise suppression and echo cancellation
Indoor station/Capacity parameters
Linked IPC capacity
16
Notice capacity
200
Linked indoor extensions capacity
5
Linked doorphone capacity
2 analog doorphones, 15 IP doorphones Max.
Indoor station/Network parameters
Wi-Fi
Wi-Fi 802.11 b/g/n
3G/4G
/
Bluetooth
/
Protocol
TCP/IP, SIP, RTSP
Indoor station/Device interfaces
Network interface
1 RJ-45 10/100 Mbps self-adaptive
RS-485
1
Alarm input
2-ch alarm inputs
Alarm output
2
Power input
1, 12 VDC
TAMPER
/
TF card
Max to 128 G, SD 2.0 or lower version
USB interface
/
Four-wire interface
2
Indoor station/General
Button
0
Power supply
IEEE802.3af, Standard PoE,12V DC
Power consumption
? 6 W
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
10% to 90%
Dimensions (W × H × D)
200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
Installation
Surface mounting
Application environment
Indoor
Protective level
/
With package: 365 g

Without package: 355 g

Stránky o produkte:

https://www.hikvision.com/en/products/hilook-video-intercom/kits/hybrid-kits/vi-k23p/?q=vi

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
