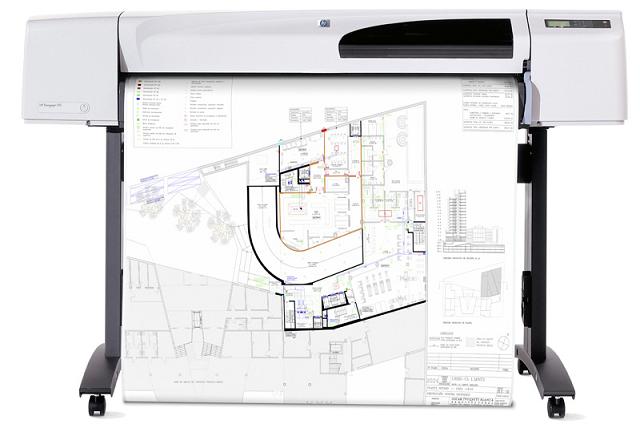

HP Designjet 510 42" A0

Popis produktu:

DesignJet 510, 42', A0, farebná, inkoustová, 2400x1200dpi - SK verzia

Technical specifications Ordering information
Print technology HP Thermal Inkjet
Print quality Up to 2400 x 1200 optimised dpi
Number of inks Cyan, magenta, yellow, black
Ink types Dye-based (colour), pigment-based (black)
Ink drop size 4 pl (colour), 18 pl (black)
Print speed Economic quality: 3.5 min/page on A1 on coated media. Line drawings: 55 sec/page on
A1, 31 A1 prints per hour on plain media (increased speed on). Photo quality: 16
min/page on A1 on glossy media
Line Line accuracy: +/- 0.2 %. Minimum width: 0.07 mm (colour), 0.09 mm (black)
Print languages HP Designjet 510 Printer: HP-GL/2, HP-RTL, HP PCL 3 GUI
Memory Standard: 160 MB; maximum: 416 MB, with HP Designjet 256 MB Memory Upgrade
Print margins (mm) Roll top: 5 mm, bottom: 5 mm, left: 5 mm, right: 5 mm
Sheet: 17 mm (top), 5 mm (right), 5 mm (left), 17 mm (bottom)
Media types Bond and coated, technical, film, photographic, proofing, self-adhesive, banner and sign,canvas
Media sizes Standard: 1067 mm models: 140 x 140 to 1067 x 1897 mm sheets, 458 to 1067 mm rolls
Maximum media length Roll: 45.7 m. Sheet: 1897 mm
Roll Maximum diameter: 100 mm
Media handling Single sheet feed, roll feed, automatic cutter (cuts all media except canvas)
Interface and connectivity Standard: 1 USB 2.0 compliant port, 1 IEEE-1284-compliant parallel port, 1 EIO Jetdirect
accessory slot. Optional: Compatible HP Jetdirect EIO print servers
Drivers included DJ 510 - 1067 mm: HP-GL/2, HP-RTL Windows® drivers; optimised
Windows® driver for AutoCAD 2000 and higher; HP PCL 3 GUI driver for Mac OS X;

Recommended system
requirements
Windows: Windows Vista®, XP®, Server 2003, 2000: Pentium® 4 (1 GHz or higher), 1
GB RAM, 2 GB available hard disk space
Macintosh: Mac OS X (10.3, 10.4, 10.5): PowerPC G4, G5, or Intel® Core™ Processor,
1 GB RAM, 2 GB available hard disk space
Power Requirements: Input voltage (autoranging) 100 to 240 V ac (+/- 10%), 50 to 60 Hz, 3 A
maximum. Supply: Internal power supply. Consumption: 150 watts maximum, 17 watts
maximum (ready/sleep), 1.5 watts maximum (off)
Dimensions (w x d x h) Out of package:  DJ 510 1067 mm: 1690 x 674 x 1100 mm;
Packaged:  DJ 510 1067mm: 1975 x 645 x 978 mm;
Weight Out of package:  DJ 510 1067 mm: 45.2 kg;
Packaged:  DJ 510 1067 mm: 105 kg;
Operating environment Operating temperature: 5 to 40° C. Recommended operating temperature: 15 to 35° C.
Operating humidity: 20 to 80% RH. Operating humidity recommended: 20 to 80% RH.
Storage temperature: -40 to 60° C. Storage humidity: 0 to 95% RH. Noise level per ISO
9296: sound power: LwAd 6.5 B(A) (active/printing), 4.4 B(A) (standby). Sound pressure:
LpAm 52 dB(A)(active), inaudible (powersave)
Certifications Safety: Compliant with the requirements for ITE products: EU Low Voltage Directive, US
and Canada CSA certified, Mexico NOM-1-NYCE, Argentina IRAM, China CCIB and
CCEE, Singapore PSB, Russia GOST, Poland PCBC. EMC certifications: Compliant with
the requirements for class B ITE products: EU (EMC directive), US (FCC rules), Canada
(DoC), Australia (ACA), New Zealand (MoC), China (CCIB), class A for Korea (MIC),
Taiwan (BSMI)
Warranty Standard warranty: one year next business day on-site support.
CH336A HP Designjet 510 610 mm Printer,
spindle, printheads (4x 1 colour), introductory ink
cartridges (x4), quick reference guide, setup
poster, doc and drivers CD, customer service
guide, power cord
CH337A HP Designjet 510 1067mm Printer:
CH336A in 1067mm plus Stand and Media bin

CH654A HP Designjet 256 MB Memory Upgrade
DIMM
Q1246B HP Designjet 100/500/800 24-in Stand & Bin
C2390A HP 42-inch Spindle
Q6643D EFI Designer Edition 5.1 RIP for HP (XL)
Intl
J7988G HP Jetdirect en1700 IPv4/IPv6 Print
Server
Ink supplies
C4911A HP 82 69-ml Cyan Ink Cartridge
C4912A HP 82 69-ml Magenta Ink Cartridge
C4913A HP 82 69-ml Yellow Ink Cartridge
CH565A HP 82 69-ml Black Ink Cartridge
CH566A HP 82 28-ml Cyan Ink Ca
