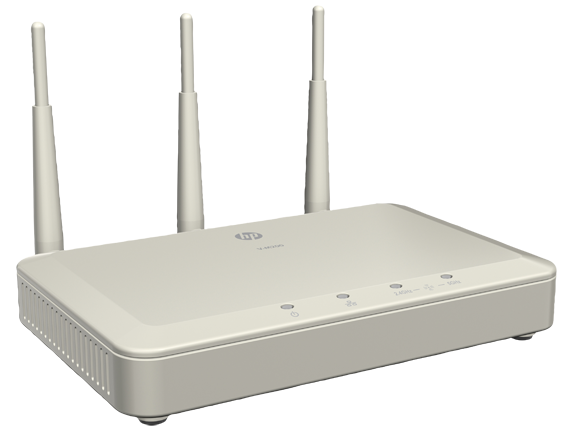

HP M200 802.11n Access Point (WW) a/b/g/n

Popis produktu:

Porty:
1 RJ-45 autosensing 10/100/1000 port(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full
1000BASE-T: full only
Bezpečnosť:
UL 60950-1; CAN/CSA 22.2 No. 60950-1; IEC 60950-1; EN 60950-1
Elektromagnetická kompatibilita:
CISPR 22 Class B; EN 55022 Class B; EN 60601-1-2; ICES-003 Class B; IEC/EN 61000-3-2; IEC/EN 61000-3-3; FCC Part 15, Class B
Napajanie :
Powered by 802.3af PoE or included power supply
Príkon:
8.4 W (maximum)
Vstupný prevádzkový prúd:
0.7 A
Rozsah prevádzkovej teploty:
0 to 40°C
Prevádzkový rozsah vlhkosti:
15 to 95% @ 104°F (40°C) (noncondensing)
Minimálne rozmery (š x h x v):
12.8 x 19.5 x 3.2 cm
Hmotnosť:
.39 kg
Záruka:
Lifetime, advance replacement, next business day

Management

NEW Secure and easy-to-use Web UI —
Quick setup page — consolidates key settings into one page for simple and rapid configuration for common deployment scenarios
HTTPS secured management sessions — prevent management sessions from being observed on the network
Integration with HP PCM — enables discovery and mapping via HP PCM, available as a free download from the Web; provides all the basic tools needed to handle a network effectively, along with a 60-day trial version of HP PCM+
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) — automated device discovery protocol provides easy mapping by network management applications
Manager, operator privilege levels — provides read-only (operator) and read-write (manager) access levels for Web management
Back to top
Connectivity

NEW Fully IEEE 802.11n-compliant dual-band access point —
2.4 GHz frequency band support — uses your IEEE 802.11n wireless clients alongside legacy IEEE 802.11b/g devices
5 GHz frequency band support — operates your IEEE 802.11n and 802.11a devices in the 5 GHz spectrum, which has less interference from microwave ovens, Bluetooth® devices, and cordless phones
IEEE 802.3af PoE-powered device (PD) option — simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location
Auto-MDIX — automatically adjusts for straight-through or crossover cables on the 10/100/1000 port
Spanning Tree Protocol (IEEE 802.1D) — prevents network loops
Back to top
Mobility

Four wireless communities — consolidates Quality of Service, security, and VLAN settings into one easy-to-manage identifier per SSID
Service-class segmentation —
Up to four SSIDs (one per wireless community) — allows administrator to identify multiple service sets for clients to access
Up to four VLANs (one per wireless community) — IEEE 802.1Q VLAN tagging provides security between workgroups
Wireless community-based prioritization — allows the administrator to help ensure that key network traffic is prioritized by weighting specific wireless communities
Auto Channel Select (ACS) — helps reduce radio co-channel interference by automatically selecting an unoccupied radio channel
Wireless Distribution System (WDS) modes —
Access Point and WDS Bridge, Access Point Only, WDS Bridge Only, and Monitor — allow HP V-M200 802.11n Access Points to connect wirelessly to other HP V-M200 802.11n Access Points without a wired backbone; this is useful for extending the network across areas where no wired infrastructure exists
Interoperability — meets Wi-Fi Alliance certifications, including IEEE 802.11n Wi-Fi and WPA2 to help provide multivendor interoperability
Three external 3x3 MIMO omni-directional antennas — enable the antennas to be configured for improved radio coverage and performance
Quality of Service management —
IEEE 802.1p — maps WMM prioritization to IEEE 802.1p queues on the wired network
Wireless community-based prioritization — allows users to prioritize traffic based on wireless community (SSID)
DiffServ — prioritizes data based on the traffic class
Back to top
Security

AP client access control functions —
IEEE 802.1X authentication using EAP-SIM, EAP-FAST, EAP-TLS, EAP-TTLS, and PEAP
MAC address authentication using local or RADIUS access lists
RADIUS AAA using EAP-MD5, PAP, CHAP, and MS-CHAPv2
Layer 2 wireless client isolation
RADIUS-based MAC authentication — authenticates a wireless client with a RADIUS server based on the MAC address of the client; this is useful for clients with minimal or no user interface
Choice of IEEE 802.11i, WPA2, or WPA — locks out unauthorized wireless access by authenticating users prior to granting network access; robust Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP) encryption secures the data integrity of wireless traffic
Secure Sockets Layer (SSL) — encrypts all HTTP traffic, allowing secure access to the browser-based management interface of the access point
Local wireless bridge client traffic filtering — when enabled, prevents communication between wireless devices associated with the same access point
Closed system — restricts broadcast of SSID as a security measure to conceal presence of the wireless network; access point does not respond to the wireless client probe request of "ANY"
Management password — provides security so that only authorized access to the Web browser interface is allowed
Wired Equivalent Privacy (WEP) using 64 and 128-bit encryption — provides backward compatibility for legacy clients
Rogue AP detection — identifies all access points in range; known or trusted access points can be saved, allowing network administrators to identify unauthorized access points
Back to top
Monitor and diagnostics

Diagnostic —
Client event log records association, authentication, and DHCP events
Packet capture tool for Ethernet and IEEE 802.11 interfaces (PCAP format)
Data rate matrix
Remote SYSLOG

Stránky o produkte:

http://www8.hp.com/sk/sk/products/networking-wireless/product-detail.html?oid=4276958#!tab

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
