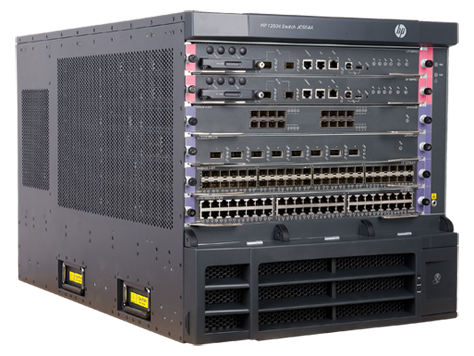

HPE 12504 AC Switch Chassis

Popis produktu:

HPE 12504 AC Switch Chassis

Ports
4 open module slots
2 MPU (for management modules) slots
4 switch fabric slots
Supports a maximum of 128 10GbE ports or 192 Gigabit Ethernet ports, or a combination
Memory and processor
Gigabit module : PowerPC @ 667 MHz, 1 GB RAM, packet buffer size: 512 MB (Ingress, shared by 24 1-GbE ports); 10G module : PowerPC @ 667 MHz, 1 GB RAM, packet buffer size: 512 MB (Ingress/shared by 2 10GbE ports); Management module : Primary CPU: PowerPC @ 1000 MHz, 128 MB flash, 256 MB compact flash, 4 GB RAM; Fabric : PowerPC @ 400 MHz, 128 MB RAM
Throughput
960 million pps
Routing/switching capacity
3240 Gb/s
Management features
IMC - Intelligent Management Center
command-line interface
out-of-band management (serial RS-232C)
SNMP Manager
Telnet
RMON1
FTP
in-line and out-of-band
terminal interface (serial RS-232C)
modem interface
Power and operating requirements
Power consumption
2380 W (maximum)
Input voltage
100-120/200-240 VAC; -48 to -60, rated/-40 to -72, maximum, VDC (depending on power supply chosen)
Operating temperature range
0 to 40°C
Operating humidity range
5 to 95% (noncondensing)
Heat dissipation
8123 BTU/hr (8569.77 kJ/hr)
Dimensions and weight
Minimum dimensions (W x D x H)
44.2 x 70.8 x 44.2 cm
Weight
60 kg
What's included
Differentiator
The HP 12504 Switch Chassis is an 4-slot AC-powered modular next-generation switching platform that delivers the scalablity and performance needed in the data center
What's in the box
(1) HP 12504 AC Switch Chassis
Warranty
1 year, advance replacement, 10 calendar day, phone support, software releases
