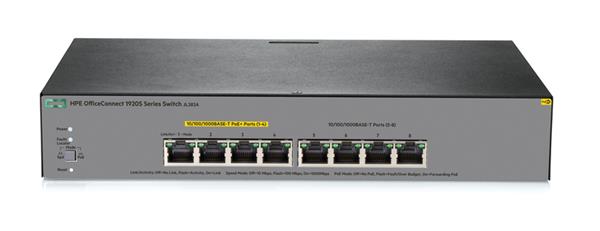

HPE 1920S 8G PPoE+ 65W Switch

Popis produktu:

HPE OfficeConnect 1920S 8G PPoE+ 65W Switch (JL383A)

I/O ports and slots
4 RJ-45 autosensing 10/100/1000 PoE+ ports; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics
Dimensions 10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height) Weight 2.01 lb (0.91 kg)
Memory and processor ARM Cortex-A9 @ 400 MHz, 256 MB SDRAM, 64 MB flash; packet buffer: 1.5 MB

Performance
100 Mb Latency < 7.0 µs
1000 Mb Latency < 2.3 µs
Throughput up to 11.9 Mpps
Routing/Switching capacity 16 Gbps
Routing table size 32 entries
MAC address table size 8,000 entries
Reliability MTBF (years) 112.36

Environment
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C)
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95% @ 140°F (60°C)
Altitude up to 10,000 ft (3 km)
Acoustic Power: 0 dB no fan

Electrical characteristics
Frequency 50/60 Hz
AC Voltage 100 - 240 VAC
Current .9 A
Maximum power rating 72.9 W
Idle power 9.7 W
PoE power 65 W PoE+

Safety
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1

Emissions
VCCI Class A; CNS 13438; ICES-003 Issue 5 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015/CISPR-32

Immunity
Generic EN 55024, CISPR 24 EN EN 55024, CISPR 24 ESD IEC 61000-4-2
Radiated IEC 61000-4-3 EFT/Burst IEC 61000-4-4
Surge IEC 61000-4-5
Conducted IEC 61000-4-6

Power frequency magnetic field
IEC 61000-4-8

Voltage dips and interruptions
IEC 61000-4-11

Harmonics
EN 61000-3-2, IEC 61000-3-2

Flicker
EN 61000-3-3, IEC 61000-3-3

Device Management
Web browser

Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
