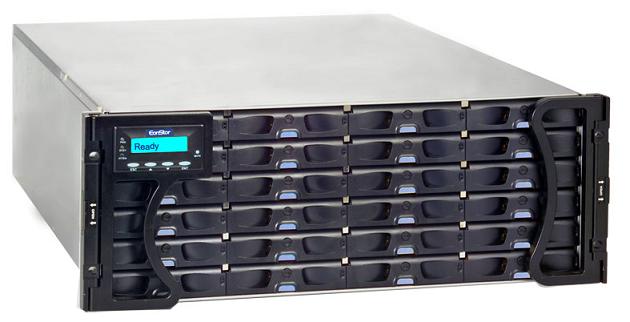

Infortrend,DS S24F-R2840-4, 4U 24-bay 6Gb/s SATA/SAS HDD to 8Gb FiberChannel/8ports/dual controler /RAID

Popis produktu:

Host Connectivity Four (4) 8Gb/s FC ports on each controller
Concurrent I/O commands
Maximum tagged command queuing: 1024
Drive Connectivity 6Gbps SAS or 3Gb/s SATA-II*, up to twenty-four (24) drives per system
Accommodates 1-inch pitch, 3.5-inch disk drives
S.M.A.R.T. support
NCQ support
Automatic bad-sector reassignment
Dedicated bandwidth to each connected drive
Drive buffer on/off switch
Supported Drives 1TB or 2TB - 3.5" 7,200 RPM 3Gb/s SATA drives(*1)
300GB, 450GB or 600GB - 3.5" 15,000 RPM 6Gb/s SAS drives

*1 For SATA drive installation on the redundant model, MUX board is required

Controller Dual redundant (ESDS S24F-R2840) or single (ESDS S24F-G2840)
Drive Expansion Ports One (1) 6Gb/s SAS 4x wide port per controller
Expansion Enclosure (JBOD) ESDS S24F-R2840: ESDS S16S-J2000-R
ESDS S24F-G2840: ESDS S16S-J2000-S
Max. Drives (via JBOD) 104
Data Protection (optional) Snapshot, Volume Copy/Mirror
RAID functionality Global, Dedicated or Enclosure hot-spare
RAID levels supported: RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
Online expansion by:
Adding new drives
Copying and replacing drives with drives of larger capacity
RAID migration
Configurable stripe size and write policy per array
Intelligent drive handling:
In degraded mode: skips irreparable blocks to continue rebuild
In normal operation: data-block verification and repair
Management Java-based SANWatch management software with multi-pathing support (EonPath)
COM1 serial port for local access to firmware-embedded utility
Automated cache flush and caching mode operation per enclosure status
GUI, Telnet, and SSH system monitoring via Ethernet
Platform-independent firmware manager
Various event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and MSN
LCD keypad panel for monitoring and access to all configuration options
Module status LED indicators:
Component presence detection & thermal sensors via I2C bus
Green Designs Power supplies delivering high energy efficiency
Intelligent multi-level drive spin-down
System Components ESDS S24F-R2840
Two (2) redundant RAID controller modules
Two (2) 2GB DIMM modules, upgradable to 4GB(*2)
Three (3) redundant 405W power supply units
Two (2) redundant cooling modules
Twenty-four (24), hot-swappable drive trays
Two (2) pre-installed Cache Backup Modules (CBM), each including one Li-Ion battery backup unit (BBU) and one Flash Backup Module (FBM)
ESDS S24F-G2840
One (1) RAID controller module
One (1) 2GB DIMM module, upgradable to 4GB(*2)
Three (3) redundant 405W power supply units
Two (2) redundant cooling modules
Twenty-four (24), hot-swappable drive trays
One (1) optional Cache Backup Module (CBM), including one Li-Ion Battery Backup Unit (BBU) and one Flash Backup Module (FBM)
*2 The default capacity of DIMM modules may vary by region; please contact our sales representatives for details.
Dimensions(without chassis ears/protrusions) 4U rackmount, 445mm (W) x 174mm (H) x 498mm (D)
Power Power supplies: Three 405W
AC voltage: 100VAC @ 8A/ 240VAC @ 4A with PFC (auto-switching)
Frequency: 50-60 Hz
Environmental Temperature: 0 to 40° C operating/ -40 to 60° C non-operating
Altitude: Sea level to 12,000ft operating / sea level to 40,000ft non-operating
Relative humidity: 5 to 95% non-condensing, operating and non-operating
Weight(without HDDs) Net weight: 21.54 kg
Gross weight: 41.7kg
Service and Support Standard Service
3-year limited hardware/software warranty and 8x5 phone, web and email support
Upgrade/Extension Options
Replacement part dispatch on the next business day (up to 5 years)
Advanced Service: 24x7 phone, web and email support + onsite diagnostics on the next business day (up to 5 years)
Premium Service: 24x7 phone, web and email support + onsite diagnostics in 4 hours (up to 5 years)
Extended Standard Service up to 5 years
