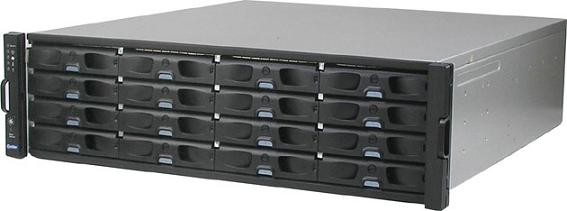

Infortrend, S16S-J1000-R, 3U 16-bay SATA/SAS to SAS RAID (JBOD)

Popis produktu:

Host Interface
Two (2) SAS 4x wide ports per controller.
Proprietary enclosure service via in-band methodology

Drive Interface
Sixteen (16) hot swappable SAS/SATA II disk drives
MUX kits with port selectors for dual-controller access to SATA drives

System Components
Redundant or single JBOD controller configurations
Fault-tolerant modules interfaced through a common backplane
Redundant, hot swappable 530W power supply units
Redundant, dual-speed cooling modules
LED diagnostics panel

Management
Management of multiple enclosures via RAID firmware and/or through GUI
Module status LED indicators:
Six (6) LED on panel (1 service LED and 5 status LEDs)
Two (2) per drive tray
Three (3) per controller module (1 Ready/Failed LED and two (2) Link status LEDs)
One (1) per power supply unit
Two (2) per cooling module

Interface
Host Interface: Eight (8) SMP PHYs interfaced through two (2) SAS 4x wide ports per expander controller.
Drive Interface: 3Gbps SAS/ SATA II

Stránky o produkte:

http://www.infortrend.com/main/2_product/es_s16s-j1000-rs.asp

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
