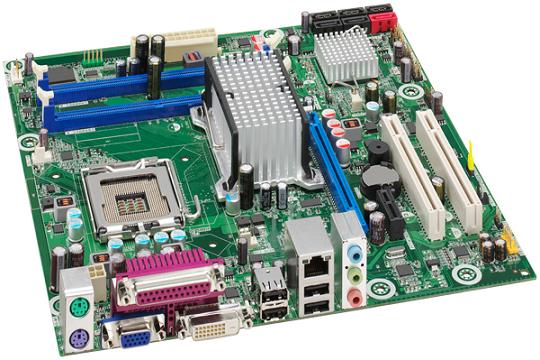

Intel® DB43LD soc.775 B43 DDR2 mATX iG DVI PCIe eSATA GL PP

Popis produktu:

MB Socket 775 INTEL iB43 Express(mATX,1333 MHz,2 DDR2 SDR,SB,SVGA,1GbitLAN,Serial ATA II/300,4xUSB2.0,45nm CPUs support)bulk

Form factor MicroATX (9.60 inches by 9.60 inches)

Processor:
View supported processors for the most current list of compatible processors.
At product launch, this desktop board supports:
Intel® Core™2 Quad processor in an LGA775 socket
Intel® Core™2 Duo processor in an LGA775 socket
Intel® Pentium® processor in an LGA775 socket
Intel® Celeron® processor in an LGA775 socket

Memory :
Two 240-pin DDR2 SDRAM dual inline memory module (DIMM) sockets
Support for DDR2 800/667 MHz DIMMs
Support for up to 8 GB? of system memory

Chipset Intel® B43 Express Chipset

Audio Intel® High Definition Audio subsystem in the following configuration:
5.1 audio subsystem using the Realtek* ALC662 audio codec

Video Intel® Graphics Media Accelerator X4500 onboard graphics subsystem with integrated DVI and VGA graphics output

LAN support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using Energy Star* ready Intel® 82567LM Gigabit Ethernet Controller

Peripheral interfaces
Ten USB 2.0 ports
Six Serial ATA 3.0 Gb/s ports, including 1 eSATA port
One serial port header
One parallel port header
Two PS/2 ports

Expansion capabilities
One PCI Express* x 16 bus add-in card connector
Two PCI Conventional* bus add-in card connectors
One PCI Express* x1 bus add-in card connectors

Additional features Ready for Intel® Upgrade Service

balenie: BULK

Stránky o produkte:

http://www.intel.com/products/desktop/motherboards/DB43LD/DB43LD-overview.htm

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
