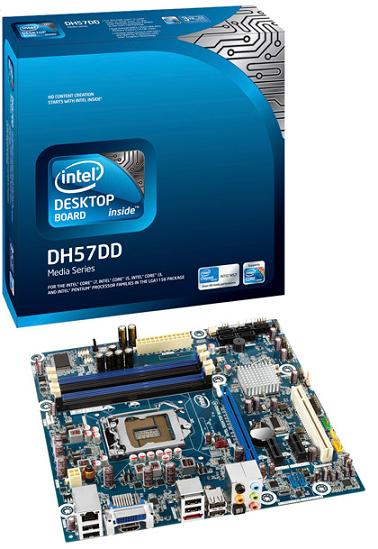

Intel® DH57DD soc.1156 iH57 DDR3 mATX iG PCIe FW GL PP

Popis produktu:

Form Factor microATX (9.6 inches by 9.6 inches [243.84 millimeters by 243.84 millimeters])

Processor
• Intel® Core™ i7, Intel® Core™ i5, Intel® Core™ i3, Intel® Pentium® processors, and Intel® Xeon® processor 3400 series in an LGA1156 socket:
- Integrated graphics processing (processors with Intel® High Definition Graphics (Intel® HD Graphics))
- External graphics interface controller
- Integrated memory controller

Chipset Intel® H57 Express Chipset consisting of the Intel® H57 Platform Controller Hub (PCH)

Memory
• Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
• Dual Channel DDR3 1333 MHz and DDR3 1066 MHz support
• Support for 1 Gb and 2 Gb memory technology
• Support for up to 16 GB of system memory with four DIMMs using 2 Gb memory technology
• Support for non-ECC memory

Graphics
• Integrated graphics support for processors with Intel HD Graphics:
- High Definition Multimedia Interface* (HDMI*)
- DVI-I
• Discrete graphics support for PCI Express 2.0 x16 add-in graphics card

Audio
• 10-channel (7.1+2) Intel® High Definition Audio via the Realtek* ALC889 audio codec
• 8-channel (7.1) Intel High Definition Audio via the HDMI interface

Peripheral Interfaces
• Fourteen USB 2.0 ports:
- Six ports are implemented with stacked back panel connectors
- Eight front panel ports are implemented with four dual-port internal headers
• Five internal Serial ATA (SATA) 3.0 Gb/s ports
• One external SATA (eSATA) back panel connector
• One serial port header
• Two front panel IEEE 1394a ports

Legacy I/O Control Nuvoton W83677i Super I/O controller for serial port support

BIOS
• Intel® BIOS resident in the SPI Flash device
• Support for Advanced

Instantly Available PC Technology
• Support for PCI* Local Bus Specification Revision 2.3
• Support for PCI Express*
• Suspend to RAM support
• Wake on PCI, PCI Express, LAN, front panel, serial, USB ports, and Consumer IR

LAN Support Gigabit (10/100/1000 Mbits/s) LAN subsystem using the Intel® 82578DC Gigabit Ethernet Controller

Expansion Capabilities
• One PCI Express 2.0 x16 add-in card connector
• Two PCI Express 1.0 x1 bus add-in card connectors
• One Conventional PCI bus add-in card connector

balenie: BULK
