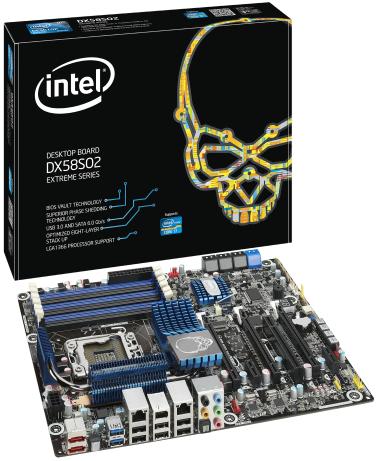

Intel® DX58SO2 soc.1366 X58 DDR3 ATX 3xPCIe RAID FW 2xeSATA GL

Popis produktu:

Form Factor ATX (12.00 inches by 9.60 inches [304.80 millimeters by 243.84 millimeters])

Processor
• Intel® Core™ i7 and Intel® Xeon® Processors in an LGA1366 socket

Memory
• Six 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
• Support for DDR3 2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz, 1333 MHz, and 1066 MHz DIMMs.
- Speeds over 1600 Mhz via XMP profiles
• Support for up to 24 GB of system memory with 6 DIMMs using 4 Gb memory technology
• Support for ECC and non-ECC memory
• XMP version 1.2

Chipset Intel® X58 Chipset, consisting of:
• Intel® X58 I/O Hub (IOH)
• Intel® 82801IJR I/O Controller Hub (ICH10R)

Audio Intel® High Definition Audio subsystem using the Realtek* ALC892 audio codec.

Legacy I/O Control Winbond W83677HG-I legacy I/O controller for Consumer Infrared (CIR)

Peripheral Interfaces
• Two USB 3.0 ports are implemented with stacked back panel connectors (blue)
• Twelve USB 2.0 ports:
- Six ports are implemented with stacked back panel connectors (black)
- Six front panel ports implemented through four internal headers
• Two external SATA (eSATA) 3 Gb/s interfaces through a Marvel 88SE6121 discrete eSATA controller (red)
• Eight internal SATA interfaces with RAID support:
- Two SATA 6 Gb/s interfaces through Marvel 88SE9128 controller (blue)
- Six SATA 3 Gb/s interfaces through the ICH10R (black)
• Two IEEE 1394a ports:
- One port via a back panel connector
- One port via an internal header for front panel cabling

LAN Support Gigabit (10/100/1000 Mbits/sec) Dual LAN subsystem using the Intel 82567L and Intel 82574L Gigabit Ethernet Controllers

Expansion Capabilities
• One Conventional PCI* bus add-in card connector (SMBus routed to the Conventional PCI bus add-in card connector)
• Three PCI Express 2.0 x16 bus add-in card connectors
• Two PCI Express 1.1 x1 bus add-in card connectors

balenie: BULK
