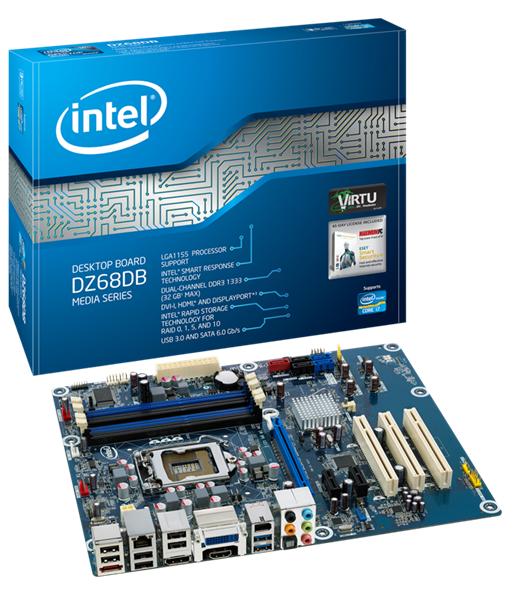

Intel® DZ68DB soc.1155 iZ68 DDR3 ATX iG 2xUSB 3.0 HDMI DVI DP PCIe FW GL

Popis produktu:

Form Factor : ATX

Processor :
• Intel® Core™ i7, Intel® Core™ i5, and Intel® Core™ i3 processors with up to 95W TDP in an LGA1155 socket
- Integrated memory controller with dual channel DDR3 memory support
- Integrated graphics processing (processors with Intel® HD Graphics)
- External graphics interface controller

Chipset : Intel® Z68 Express Chipset consisting of the Intel® Z68 Express Platform Controller Hub (PCH)

Memory :
• Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
• Support for DDR3 1333 MHz and DDR3 1066 MHz DIMMs
• Support for 1 Gb, 2 Gb, and 4 Gb memory technology
• Support for up to 32 GB of system memory with four DIMMs using 4 Gb memory technology
• Support for non-ECC memory
• Support for 1.35 V low voltage JEDEC memory

Graphics :
• Integrated graphics support for processors with Intel HD Graphics: High Definition Multimedia Interface* (HDMI*), DVI-I, DisplayPort*
• Discrete graphics support for PCI Express 2.0 x16 add-in graphics card

Audio :
• 10-channel (7.1 + 2) Intel High Definition Audio via the Realtek ALC892 audio codec including:
- Front panel audio header with support for Intel HD Audio and AC ’97 Audio
- Five analog audio jacks on the back panel
- Onboard S/PDIF out header and back panel optical S/PDIF out connector
• 8-channel (7.1) Intel HD Audio via the HDMI interface

LAN : Gigabit (10/100/1000 Mbits/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller

Expansion Capabilities :
• One PCI Express 2.0 x16 add-in card connector
• Two PCI Express 2.0 x1 add-in card connectors
• Three Conventional PCI bus connectors

Peripheral Interfaces :
• Two USB 3.0 ports are implemented with stacked back panel connectors (blue)
• Fourteen USB 2.0 ports:
- Six ports are implemented with stacked back panel connectors (black)
- Eight front panel ports implemented through four internal headers
• Two SATA 6.0 Gb/s interfaces through Intel Z68 Express Chipset with Intel® Rapid Storage Technology RAID support (blue)
• Four Serial ATA (SATA) 3.0 Gb/s interfaces through Intel Z68 Express Chipset with Intel Rapid Storage Technology RAID support:
- Two internal SATA ports (black)-
- One internal eSATA port (red)
- One back panel eSATA port (red)
• Two IEEE 1394a ports:
- One port via a back panel connector
- One port via an internal header for front panel cabling

balenie: BULK

Stránky o produkte:

http://www.intel.com/products/desktop/motherboards/db-DZ68DB/DZ68DB-overview.htm

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
