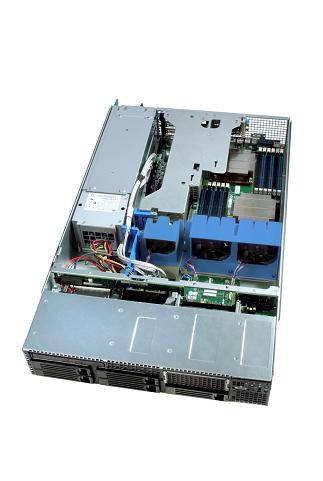

Intel® Server System SR2600URBRP(Urbanna- 2U)

Popis produktu:

Product Family Intel® Xeon® Processor 5500 Series
Description Intel® Server System SR2600URBRP includes:
- One Intel® Server Board S5520UR
- Standard front panel
- Five 3.5” Hot-swap Hard Drive carriers
- Tape drive bay filler
- Riser with three full-height PCI-E slots
- Passive SAS/SATA midplane
- Three non-redundant fans
- One hot-swap and redundant capable high-efficient 750W power supply
- Two processor heat-sinks

Up to 2 Intel® Xeon® processor 5500 series
Chipset Intel® 5520 chipset with Intel® ICH10R
Thermal solutions Intel® Thermal Solution STS100 series

Intel® QuickPath Technology 4.8 GT/s, 5.86 GT/s and 6.4 GT/s
Memory 12 DDR3 DIMM sockets (registered or unbuffered)

6 channel native (800/1066/1333MHz)

Memory RAS features Channel mirroring, demand scrubbing, patrol scrubbing, and channel independent mode
Total slots Up to 5 plus 2 optional Intel® I/O Expansion Modules and 1 optional bridgeboard connector
Slot types 1U chassis: 1 PCI Express* 2.0 x16 slot
2U chassis: 3 or 5 PCI Express 2.0 x8 slots or 3 PCI Express 2.0 x8 slots and 2 PCI-X 133 slots

Storage 6 SATA ports (3Gbps) via ICH10R with Intel® Embedded Server RAID Technology
Modular SAS RAID solution via optional Intel® I/O Expansion Module or Intel SAS Midplane 2

Intel® RAID support Integrated SATA RAID levels 0/1/10
Optional integrated SW RAID 5 with activation key
Optional validated Intel® RAID Controllers

Integrated LAN Embedded Intel® Dual Gigabit Controller 82575EB with Intel® Virtualization Technology?
Integrated graphics Server Engine* LLC Pilot II* controller with 64 MB DDR2 memory, 8MB allocated to graphics
Management hardware Integrated IPMI 2.0 baseboard management controller
Optional Intel® Remote Management Module 3 (RMM3)

Management software Intel® System Management Software
Intel® Deployment Assistant

Intel® RAID Accessories (Optional)

AXXRAKSAS2  AXXRAKSAS2 - Intel® RAID Activation Key for SAS Midplane 2   1 [+]

Intel® RAID Memory Options (Optional)

AXXMINIDIMM512 512MB min-DIMM for SAS Midplane 2   1 [+]


Intel® RAID Battery Back Up Solutions (Optional)

AXXRSBBU3 Intel® RAID Smart Battery Backup Module (Use with Intel® Integrated Server RAID)   1 [+]

Intel® Flex Bay Kits (Optional) Click Here to Compare Options

ASR2500SIXDRV 6th SAS/SATA HDD Kit   1 [+]
 Please Wait
ASR2500SATAPE SATA Tape Drive Mounting Kit   1 [+]
 Please Wait
ASR2600FXDRV 2x2.5" Fixed Drive Accessory Kit   1 [+]
 Please Wait



Intel® Chassis Control Panel Options (Optional)

ASR2600LCP SR2600 LCP Accessory Kit   1 [+]



Intel® I/O Module Options (Optional)

AXX4GBIOMOD2 Quad port GbE I/O module   1 [+]

AXX10GBIOMOD Dual CX4 port 10GbE I/O module   1 [+]

AXXIBIOMOD InfiniBand I/O Expansion Module   1 [+]

AXXSASIOMOD External 4 port SAS I/O Expansion Module   1 [+]

AXXGBIOMOD Dual Gigabit Ethernet I/O Expansion Module   1 [+]


Intel® Riser Card Options (Optional) Click Here to Compare Options

ASR26XXFHXR ASR26XXFHXR Five Slot PCI-Express* Active Riser with PCI-X Bridge   1 [+]

ASR26XXFHLPR ASR26XXFHLPR Five Slot PCI-Express* Active Riser   1 [+]


Intel® Management Modules (Optional)

AXXRMM3 Intel® Remote Management Module 3   1 [+]




Cennik pri kompletizacii zostavy v ASBISE

SKS_SRVMB1  1.mechanicka montaz+skusobna instalacia software tj.  overenie funkcii vsetkych komponentov update BIOS.....49EUR
SKS_SRVMB2  2.mechanicka montaz+predinstalacia software (zakupeneho unas)+ overenie funkcii vsetkych komponentov update BIOS...79EUR
SKS_SRVMB3  3.mechanicka montaz+predinstalacia software (zakupeneho unas)+ overenie funkcii vsetkych komponentov update BIOS+nastavenie RAID poli tj. finalna uprava .... 110EUR

Stránky o produkte:

http://serverconfigurator.intel.com

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
