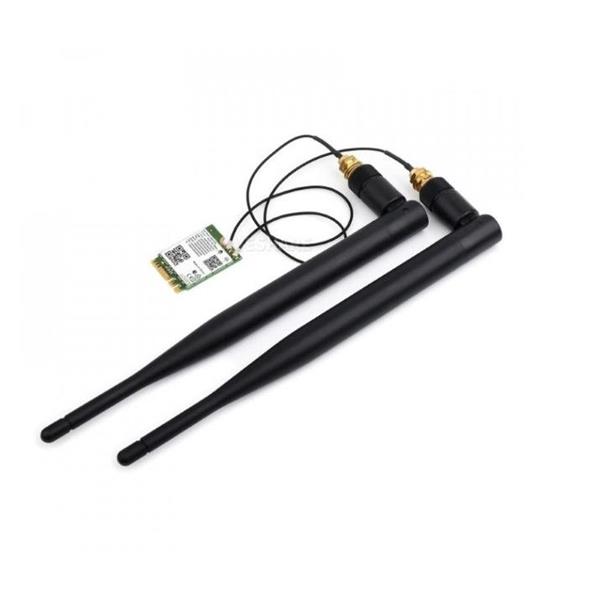

Intel® Wi-Fi 6E AX210 (Gig+), 2230, 2x2 AX R2 (6GHz)+BT, kit

Popis produktu:

NTEL® WI-FI 6E AX210 (GIG+) COMMERCIAL TEMPERATURE IOT EMBEDDED KIT TECHNICAL SPECIFICATIONS
General
Retail Single Box Dimensions (H x W x D) 145mm x 205mm x 26mm
Retail Single Box Weight 143.5g
Overpack 5u Dimensions (H x W x D) 160mm x 230mm x 150mm
Overpack 5u Weight 727.5g
RF Cable 2ft. length coaxial cable OD 1.13 mm FEP Black Jacket
Antenna Dual-band: Frequency 2.4-2.5GHz/5.515-7.125GHz, SMA plug
Motherboard Connector Interface M.2: Key E or A for wireless
Radio ON/OFF Control Supported
Connector SMA, male, brass, gold plated, insulated; MHF IV plug, gold plated
Use Conditions For details on Intel Embedded use conditions, please contact your Intel Account Manager
Operating Ambient Temperature 0°C to +70°C
Non-operating 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
Operating Systems Microsoft* Windows* 10 Enterprise LTSC, Linux*
Wi-Fi Alliance5 Wi-Fi CERTIFIED* 6, Wi-Fi CERTIFIED* a/b/g/n/ac, WMM*, WMM*-Power Save, WPA2*, WPA3*,
WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Agile Multiband*, and Wi-Fi Timesync*
IEEE WLAN Standard IEEE 802.11-2016 and select amendments (selected feature coverage)
IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax; Fine Timing Measurement based on 802.11-2016,
Wi-Fi Location R2 (802.11az) hardware readiness6
Bluetooth® Bluetooth® 5.3
Availability and Support Long-life availability
Long-life Intel Support
Security
Security Methods7 WPA2*; WPA3*
Authentication Protocols 802.1x EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA')
Encryption 128-bit AES-CCMP, 56-bit AES-GCMP
Compliance
Regulatory For a list of country approvals, please contact your local Intel representatives.
Product Safety UL, C-UL, CB (IEC 60950-1)
US Government FIPS8 140-2
EXPERIENCE THE INTEL® DIFFERENCE
Worldwide Regulatory Support
Intel® Dynamic Regulatory Solution
Enables performance-optimized worldwide regulatory compliance on a single adapter SKU. The
Intel® Wi-Fi 6E AX210 (Gig+) Commercial Temperature IoT Embedded module detects its location
and automatically optimizes the Wi-Fi settings to local regulatory requirements, optimizing
performance in each geography, simplifying global enterprise procurement. Future regulatory
changes are easily managed during the product life cycle.
Wireless Functionality in Pre-boot
Environment
Support for Wi-Fi network and Bluetooth® Low Energy HID connectivity in the platform UEFI
(Unified Extensible Firmware Interface) environment during its boot stage. This capability enables
use cases like OS recovery over Wi-Fi and Bluetooth® Low Energy-based keyboard and mouse
connectivity in this pre-boot environment.
BUSINESS-CLASS WIRELESS
Built for IoT The Intel® Wi-Fi 6E AX210 (Gig+) Commercial Temperature IoT Embedded kit combines long-life
support and long-life availability, pre-validation on Intel IoT platforms, as well as wireless Intel®
AMT to connect your embedded IoT platforms to other edge devices. Target Wake Time (TWT) is
a feature that can be used to extend the battery life of remote Wi-Fi 6E sensors.
