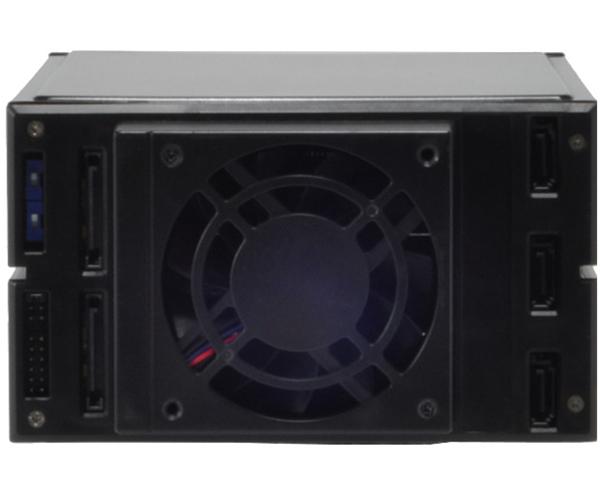

Jou Jye backplane 3-in-2 3.5" 3x SATA/SAS HDD do 2x 5,25" black

Popis produktu:

rugged and high anti-vibration standard products and worry-free
of the heat and vibration!
Now an IPC industrial standard is also for soho and consummers
Multi-bay backplane for 3.5" & 2.5" HDD(SSD) data transferring solution
Allow to install 3 x 3.5" (or 2.5") SATA or SAS HDD or SSDs
With 3 individual carrier for easy swapping in/out
Double HDD tray security -- metal lock and sliding lock
Easy drives swap in/out or for transporation
Side sliding rails with vibration reducing springs
Individual LED indication for the 3 drives -- power on and blinking for accessing
LED indication for fan failure and overheating
With HDD accessing On/Off Control Switch for accessing indication or not

Model Name

JJ-2132M-SS SATA+SAS, black 2/3 HDD



Interface

SATA & SAS



Compatible with

SAS or
SATA-I  1.5Gbit/s, SATA-II 3.0Gbit/s, SATA-III 6.0Gbit/s



Bays

2 x 5.25 Bay for 3 HDD



HDD size

3.5" or 2,5" SATA or SAS HDD or SSDs



Power connector

SATA 15pin x 2



Performance

SATA-I:  upto 1.5Gbit/s
SATA-II:  upto 3.0Gbit/s
SATA-III: upto 6.0Gbit/s
SAS-I:  upto 3.0Gbit/s
SAS-II: upto 6.0Gbit/s



Plug & play

Supports plug & play, hot swappable



Material

Aluminum



Colour

Black



Ventilation

With 3000RPM 8*8cm Cooling Fan



Extra features

*Double HDD tray security - metal lock and sliding lock
*Providing different mounting holes on both sides
*Support SATA and also SAS primary channel
*LED indication for fan failure and overheating
*With HDD accessing On/Off control switch
*Cableless connection



Dimensions [mm]

202(L) x 146(W) x 86mm(H)



Weight

1.3KG
