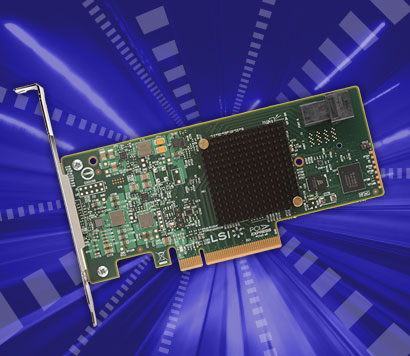

LSI SAS 9300, PCI-E 3.0 12Gb/s, SATA/SAS HBA 4ch bulk

Popis produktu:

Add the performance of 12Gb/s SAS to workstations and 1U/2U servers with the LSI® SAS 9300-4i 12Gb/s SAS Host Bus Adapter. For applications needing internal connectivity, the 9300-4i supports 12Gb/s SAS storage as well as SATA infrastructure.
Connect up to 1024 SAS and SATA devices with 4 internal 12Gb/s SAS and SATA ports
Fit into 1U/2U rack-mounted servers and workstations with low-profile form factor (full-height bracket included)
Provide up to 12Gb/s SAS and up to 6Gb/s SATA performance across 8 lanes of PCIe® 3.0 connectivity

LSI SAS 9300-4i LSI00347 9300-4i HBA


I/O Controller LSI SAS3004
Data Transfer Rates 12Gb/s SAS 3.0 compliant
Host Bus Type x8 lane PCI Express® 3.0
Physical Dimensions Low profile (2.6” x 6.0”)
Internal Connectors 1 Mini-SAS HD SFF8643
Brackets Full height and low profile vented
Cable Support Passive copper
Operating Voltage +12V +/-8%; 3.3V +/-9%
PCI Power 10.2W
Devices Supported 1024 Non-RAID SAS/SATA devices
Operating Temperature 0°C to 55°C
Operating Humidity 5% to 90% non-condensing
MTBF >2,800,000 hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. Visit www.lsi.com/support/ for the most complete list of supported operating systems.
Warranty 3 years, free advanced technical support, advanced replacement option
Internal Ports 4
Fusion MPT Support Fusion MPT™ 2.5

Stránky o produkte:

http://www.lsi.com/products/host-bus-adapters/pages/lsi-sas-9300-4i.aspx#tab/tab0

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
