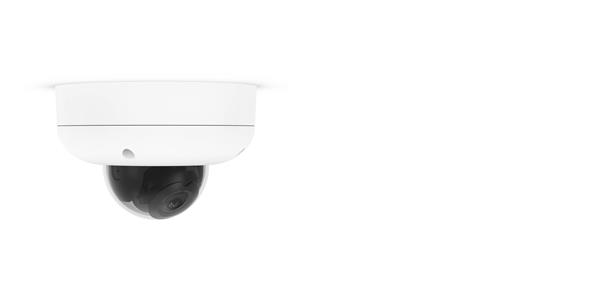

Meraki MV71 Cloud Managed Outdoor HD Dome Camera

Popis produktu:

Camera
1/3.2" 5MP (2560×1920) progressive CMOS image sensor
128GB high endurance solid state storage
3 - 10mm vari-focal lens with variable aperture f/1.3 - f/2.5
Variable field of view:
28° - 82° (Horizontal)
21° - 61° (Vertical)
37° - 107° (Diagonal)
Automatic iris control with P-iris for optimal image quality
1/5 sec. to 1/32,000 sec. shutter speed
Minimum illumination 0.27 Lux @ F1.3 (color) 0.001 Lux @ F1.3 (B&W)
S/N Ratio exceeding 62dB - Dynamic Range 69dB
Hardware based light meter for smart scene detection
Built-in IR illuminators, effective up to 30 meters (98 feet)
Integrated heating elements for low temperature outdoor operation

Video
720p HD video recording (1280×720) with H.264 encoding
Cloud augmented edge storage (video at the edge, metadata in the cloud)
Up to 20 days of video storage per camera*
Direct live streaming with no client software (native browser playback)**
Stream video anywhere with autotmatic cloud proxy

Networking
1x 10/100 Base-T Ethernet (RJ45)
Compatible with Meraki wireless mesh backhaul (separate WLAN AP required)
DSCP traffic marking

Features
Cloud managed with complete integration into the Meraki dashboard
Plug and play deployment with self-con guration
Remote adjustment of focus, zoom, and aperture
Dynamic day-to-night transition with IR illumination
Noise optimized motion indexing engine with historical search
Shared video wall with individual layouts supporting multiple cameras
Selective export capability with cloud proxy
Highly granular view, review, and export user permissions with SAML integration

Power
Power consumption 21.95W maximum via 802.3at PoE+

Environment
Operating temperature: -40°C - 50°C (-44°F - 122°F)
Working temperature: -50°C - 50°C (-58°F - 122°F)

In the box
Quick start & installation guide
MV camera hardware
Wall mounting kit, drop ceiling T-rail mounting hardware

Physical characteristics
Dimensions 173.3mm × 115mm (diameter × height)
Weather-proof IP66-rated housing
Vandal-proof IK10-rated housing
Lens adjustment range:
65° Tilt
350° Rotation
350° Pan
Weight 1.482kg (including mounting plate)
Female RJ45 Ethernet connector
Supports Ethernet cable diameters between 5-8mm in diameter
Status LED
Reset button

Warranty
3 year hardware warranty with advanced replacement
