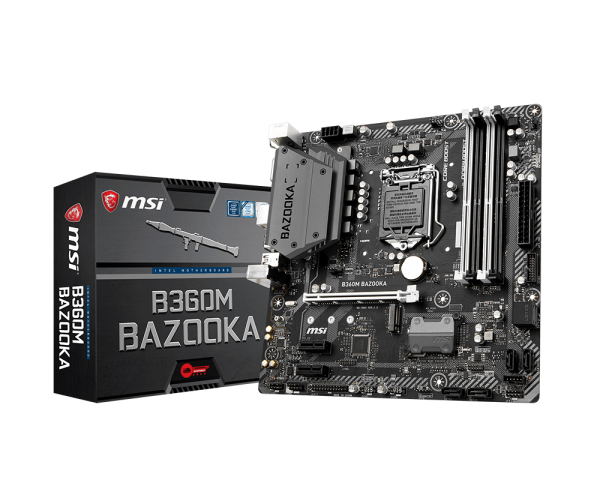

MSI B360M BAZOOKA/Socket 1151/DDR4/USB3.1/DVI/HDMI/mATX

Popis produktu:

PROCESSOR
Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151

See supported processors

CHIPSET
Intel® B360 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 2666/ 2400/ 2133 MHz1
Dual channel memory architecture
Supports non-ECC UDIMM memorye
Supports Intel® Extreme Memory Profile (XMP)
Please refer to www.msi.com for more information on compatible memory
See supported memory

SLOTS
1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
STORAGE
Intel® B360 Chipset
6 x SATA 6Gb/s ports1
1 x M.2 slots (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
Intel® Optane™ Memory Ready2
The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B360 Chipset
6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Dual Realtek® ALC887 Codec
7.1-Channel High Definition Audio
LAN
1 x Realtek 8111H Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
1 x Parallel port connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Thunderbolt add-on card connector
1 x RGB LED connector
1 x Clear CMOS jumper
BACK PANEL PORTS
Mouse and Keyboard Port
LAN Port
USB 3.1 Gen1 Type A
HD Audio Connectors
DVI-D Port
HDMI Port
USB 2.0 Port
USB 3.1 Gen1 Type C
MSI B360M BAZOOKA back panel ports
DIMENSIONS
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
MOUNTING
8 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
