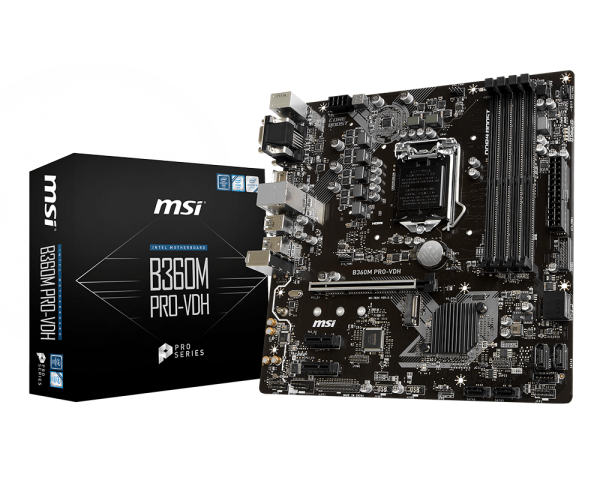

MSI B360M PRO-VDH/Socket 1151/DDR4/USB3.1/DVI-D/HDMI/mATX

Popis produktu:

PROCESSOR
Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

See supported processors

CHIPSET
Intel® B360 Chipset

MEMORY
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 2666/ 2400/ 2133 MHz Memory
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
See supported memory

SLOTS
1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz
STORAGE
Intel® B360 Chipset
6 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280/ 22110 storage devices
Intel® Optane™ Memory Ready2
The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B360 Chipset
6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Realtek® ALC887 Codec
7.1-Channel High Definition Audio
LAN
1 x RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
1x Parallel port connector
1x Serial port connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Thunderbolt add-on card connector
1x Clear CMOS jumper
BACK PANEL PORTS
1x PS/2 mouse port
1x VGA port
1x HDMI™ port
1x LAN (RJ45) port
2x USB 3.1 Gen1 ports
1x USB 3.1 Gen1 Type-A port
1x PS/2 keyboard port
1x DVI-D port
2x USB 2.0 ports
1x USB 3.1 Gen1 Type-C port
3x Audio Jacks
MSI Z370 SLI PLUS back panel ports
DIMENSIONS
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
MOUNTING
8 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit

Stránky o produkte:

https://www.msi.com/Motherboard/B360M-PRO-VDH/Specification

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
