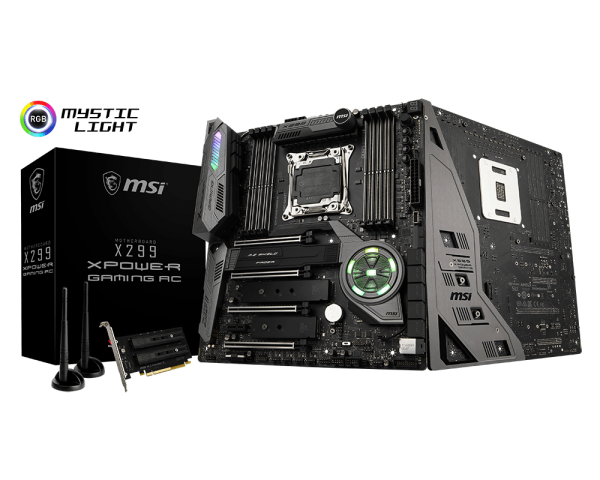

MSI X299 XPOWER GAMING AC/Socket 2066/DDR4/USB3.1/GL/RAID/E-ATX

Popis produktu:

CPU
• Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket
* This function will be supported depend on the CPU.

Chipset
• Intel® X299 Chipset

Main Memory
• 8 x DDR4 memory slots, support up to 128GB*
• Quad channel memory architecture with the CPU that supports up to 4-channels DDR4**
- X-series processor support DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz*
• Dual channel memory architecture with the CPU that supports up to 2-channels DDR4**
- X-series processor support DDR4 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz*
• Supports Intel® Extreme Memory Profile (XMP)
* For the latest information about memory, please visit http://www.msi.com
** Please refer the DIMM Slots section for more details.

Slots
• 4 x PCIe 3.0 x16 slots - Support x16/x0/x16/x8, x8/x8/x16/x8 mode with the 44-lane CPU.
- Support x16/x0/x8/x4, x8/x8/x8/x4 modes with the 28-lane CPU.
- Support x8/x0/x4/x4 modes with the 16-lane CPU.
• 1 x PCIe 3.0 x1 slots

Multi-GPU
• Supports AMD® CrossFire™ Technology
• Supports NVIDIA® SLI™ Technology

Storage
• Intel® X299 Chipset
• 10 x SATA 6Gb/s ports*
• 3 x M.2 slots (Key M)*
• M2_1, M2_2 slots support 2242/ 2260 /2280/ 22110 storage devices
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
• M2_3 slot supports 2242/ 2260 /2280 storage devices
- Supports up to PCIe 3.0 x4
• Intel® Optane™ Memory Ready for M2_1, M2_2 slots
• 1 x U.2 port *
- Supports PCIe 3.0 x4 NVMe storage
• Supports Intel® Smart Response Technology**
* M.2 slots and SATA ports share the same bandwidth.
**The functions will be supported depend on the CPU.

RAID
• Intel® X299 Chipset • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices • Supports RAID 0 and RAID 1 for M.2 PCIe storage devices** * M.2 PCIe RAID volume can be created with M.2 GENIE. USB
• ASMedia® ASM3142 Chipset
- 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector)
• ASMedia® ASM1074 Hub
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel
• Intel® X299 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio
• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN
• 1 x Intel® I219-V Gigabit LAN controller
• 1 x Intel I211 Gigabit LAN controller

Wireless LAN & Bluetooth®
• Intel® Dual Band Wireless-AC 8265 module
- The Wireless module is pre-install in the M2_3 (Key-E) slot.
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x flat 4-pin ATX 12V power connector*
- 10 x SATA 6Gb/s connectors
- 3 x M.2 slots (Key M x2, Key E x1)
- 1 x U.2 port
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1 x USB 3.1 Gen2 Type-C port
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 4 x 4-pin system fan connectors
- 4 x 4-pin extend fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Virtual RAID on CPU connector
- 1 x 2-pin Thermal Sensors connector
* Provides additional power to PCIe x16 slots

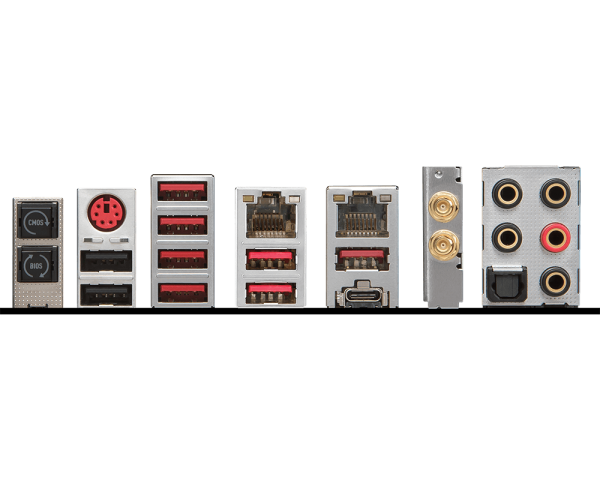

Back Panel I/O Ports
- 1 x Clear CMOS button
- 1 x BIOS FLASHBACK+ button
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x BIOS FLASHBACK+ port
- 6 x USB 3.1 Gen1 Type-A ports
- 2 x LAN (RJ45) port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 2 x WiFi antenna connectors
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks

Dimension
• 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
• E-ATX Form Factor

Mounting
• 9 mounting holes
