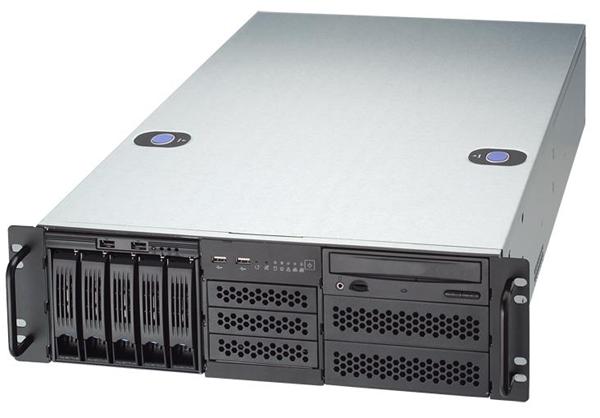

Server Chassis Chenbro RM31300E, rack 3U, Black, bez zdroja

Popis produktu:

pecificationOrder Code

RM31300-E

Description

3U Chassis, 6 x5.25"+3x 3.5" Bays , w/Slide Rail, Tylersburg Ready

M/B Form Factor

EEB (12"X13")

Processor

Intel / AMD DP Quad

Support Backplane

N/A

Security

Intrusion Switch

Front Bezel Option

Option

Chassis Dimension
D x W x H (mm) 660 x 430 x 132 (mm)
D x W x H (inch) 26" x 16.9" x 5.2"


Power Supply
Form Factor Single / RPSU
Watt Option
Redundancy Option


Drive Bay
External 5.25" 6
External 3.5" 3

Generality
Metal Material SGCC
Metal Thickness 1.2mm
Plastic Material Type ABS-HB


Expansion Slots
FF 7


System Cooling
Middle 4x 80 mm (T=32mm) Fans
Rear 2x 80 mm Fans (Option)


Rear Window

Standard

Slide Rail

Included

Front Panel
Front Control Power On/Off
System Reset
Alarm Mute
Indicator Power Status
HDD Activity (x1)
LAN Activity (x2)
Event Warning
Ports 2x USB 2.0


Shipping Information*
Net Weight
(Chassis Only) 12.3 Kg
Gross Weight (w/Packing) 16.38 Kg
Cubit Feet 5.22
Container Information
20' 204 (Single Packing)
40' 420 (Single Packing)
40'H 473 (Single Packing)




* Actual weight varies by configuration and manufacturing process.
* The specification and pictures are subject to change without notice.

Package ContainPart Category Qty. Description
Chassis 1 RM31300
Fans 4 80 x 80mm T32mm Fan, 3P3C, 4400RPM
Slide Rail 1 26", Slide rail, Ball Bearing
PCB 1 LED& FPIO Board

Optional Accessory
CableProduct Part. No# Description
26H073118-006
CABLE,ROUND,IDE ATA133, 560mm
26H073215-001 CABLE,ROUND, IDE ATA133, 700mm
26H113215-017 Cable, SFF8087(BP) to SATA(Host, right angle), 600mm


PSU BracketProduct Part. No# Description
84H331310-009 BRACKET, PSU, 3U, ZIPPY C2W-5620V/5820V


CPU Retaintion KitProduct Part. No# Description
84H332210-002 CPU mounting Bracket, For CEB 1.1 M/B, 2pcs/set


FansProduct Part. No# Description
84H000010-049 FAN,60mm, 3P3C,L300mm,W/Finger Guard


PSUProduct Part. No# Description
32H151002-002 510W, 2U Single, P2G-6510P, EPS12V
32H165007-002 650W, 2U Single, FSP650-802U, EPS12V
32H2062000202 PSU, 620W, 1+1 Redundant, C2W-5620V, PMbus
32H2082000202 PSU, 820W, 1+1 Redundant, C2W-5820V, PMbus


Rackmount Front BezelProduct Part. No# Description
84H331310-001
Front Bezel,SilFox, For RM31300
88H331200-001
Front Bezel, Plastic, For RM312/313/314


Slide RailsProduct Part. No# Description
84H321710-041 Slide Rail, 26", 2U~4U, New EZ-Mount(Tool-less)

Stránky o produkte:

http://www.chenbro.eu/corporatesite/products_detail.php?sku=140

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
