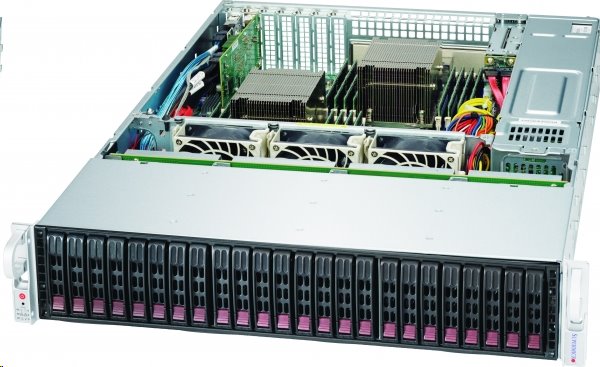

Supermicro SuperChassis CSE-216BE2C-R920LPB

Popis produktu:

Key Features

2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
7 low-profile expansion slot(s)
3 x 8cm high-performance PWM fan(s)
Optional 5 x 6cm 4pin high performance fan(s)
roduct SKUs

CSE-216BE2C-R920LPB
SuperChassis 216BE2C-R920LPB

Form Factor

2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support

Dual, single Intel® / AMD processors

Dimensions

Height
3.5" (89 mm)
Width
17.2" (437 mm)
Depth
24.8" (630 mm)
Gross Weight
53 lbs (24.04 kg)
Packaging (W x H x L)
25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm)
Available Color
Black

Expansion Slots

7 low-profile expansion slot(s)

Drive Bays

24 x 2.5" hot-swap SAS/SATA drive bay
Optional 2 x 2.5" hot-swap drive bay

Backplane

24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD

Front Panel

Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Unit Identification (UID) LED


Motherboard (for CSE- 216BE2C-R920LPB)

X9DAi X10DRi-LN4+
X10DRi-T4+ X10DRC-T4+
X10DRC-LN4+ X10DRi
X10DRi-T X10DRH-I
X10DRH-iT X10DRH-CT
X10DRH-C X10DRH-iLN
X10DRH-CLN4
Systems Cooling

Fans
3 x 8cm high-performance PWM fan(s)
Optional 5 x 6cm 4pin high performance fan(s)

System Monitoring

Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Power Supply
1U 920W Redundant Platinum Super Quiet power supply W/PMbus
Power Efficiency
94%
Total Output Power and Input
920W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
336 x 76 x 40 mm
Output Type
Backplanes (gold finger)
+12V
Max: 75A / Min: 1A (100Vac - 240Vac)
+5Vsb
Max: 4A / Min: 0A
Power Distributor
PDB-PT216-2824
O/P: 12V/100
+5V Max: 30
+3.3V Max: 24
-12V Max: 0.6
Certification
Platinum Certified  Platinum Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL

Stránky o produkte:

https://www.supermicro.com/products/chassis/2U/216/SC216BE2C-R920LPB
