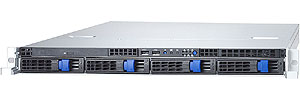

TYAN Server Transport GT24 (B2932)

Popis produktu:

Motherboard
• TYAN Thunder n3600M:
  - S2932G2NR-L-B >> B2932G24V4H
  - S2932WG2NR >> B2932G24W4H
• Extended ATX footprint (12" x 13")

Processor
• Dual 1207-pin Socket
• Support up to 2 x AMD® Opteron™ Rev. F
   2000 series Dual Core/Quad Core processors
• Up to 1.0 GHz Hyper-Transport link support.

Chipset
• nVIDIA nForce Pro 3600
• NEC nPD720400
• SMSC DME5017

System Memory
• (16) 240-pin DDR2 DIMM sockets
• Up to 64GB of reg. DDR2 667/533/400 memory

Expansion Slots
• (1) PCI-E x8 slot: riser card model: M2083
  (full height / full length card support)

Integrated Video
• ATI® ES1000 PCI graphics controller
• 32MB DDR frame buffer of video memory

Server Management
• Automatic fan speed control
• Support Tyan Server Management (TSM)
• Tyan SMDC kit (optional), IPMI v2.0 compliant

Integrated LAN Controller
• (2) 10/100/1000 Base-T LAN (nForce Pro 3600
  integrated MAC w/ Marvell 88E1121 GbE PHY

BIOS
• AMI BIOS 8Mbit Flash
• Supports ACPI 2.0
• PnP, DMI2.0 WfM2.0 Power management


Chassis

Enclosure
• Industry 19" rack-mountable 1U chassis
   (1) slim CD-ROM bay; (4) 3.5" HDD bays
• Dimension: 25.4" (D) x 17.2" (W) x 1.72" (H)
• Dimension (mm): 645 (D) x 436 (W) x 43.6 (H)

Power Supply
• EPS 12V, 1U, 650W with PFC
• 100V ~ 240V AC input

Back I/O Ports
• (1) PS/2 Mouse and (1) keyboard ports
• (1) 9-pin UART Serial port
• (1) 15-pin VGA port
• (2) USB 2.0 ports
• (2) GbE LAN ports with activity LED

Front Panel Features
• I/O: (2) USB 2.0 ports
• LED indicators:
    HDD Active, power, (2) LAN, ID, & warning LEDs
• Switch: power, reset, ID, NMI

Storage
• SKU B2932G24V4H:
   - Serial ATA II Host controllers embedded
   - Support 6 serial ports running at 3.0Gb/s.
   - NV RAID 0, 1, 0+1, 5 and JBOD support


System Cooling
• (2) 40x40x56 mm 15000rpm heavy-duty fans
    with fan speed monitor/control
• (3) 40x40x28 mm 15000rpm heavy-duty fans
    with fan speed monitor/control
• (2) Passive CPU heatsink

Environment Temperature
• Operating temperature 5°C ~ 35°C
• Non-operating temperature -40°C ~ 70°C

Regulatory
• FCC Class B, CE (Declaration of Conformity)
