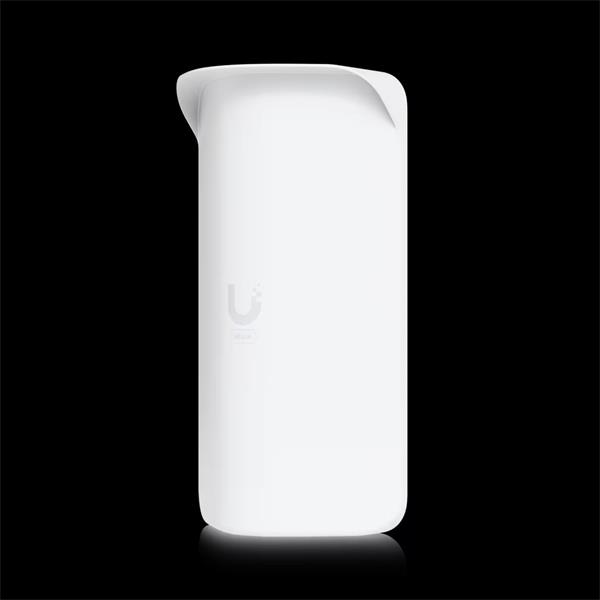

Ubiquiti 60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symm

Popis produktu:

Technical Specifications
Mechanical
Dimensions 158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9")
Weight 1.5 kg (3.3 lb)
Enclosure material UV stabilized polycarbonate, aluminum alloy
Pole mount diameter 25.4 to 60 mm (1 to 2.4") on pipe outer diameter
Wind loading 109.8 N at 200 km/h (25 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory DDR3L 512 MB
Networking interface (1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
Max. power consumption 24W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A 2.5 GbE PoE adapter (Included)
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
Button Factory reset
LEDs Power, Ethernet, GPS
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
Software
Operating mode PtMP access point
Ubiquiti specific features Wave AI, discovery protocol
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey
Network Bridge mode
Application requirements UISP: Version 2.4.205 and later
System
Total throughput 5.4 Gbps
Supported clients count 31
Max. range Connecting to a Wave Pro: up to 6 km
Connecting to a Wave Long-Range: up to 6 km
Connecting to a Wave Nano: up to 4 km
Connecting to a Wave Pico: up to 0.9 km
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080, 540 MHz
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 20 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 90°
Elevation: 3 dB 7°
Electrical downtilt 0°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/CA




Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain 13 dBi
Cross-pol isolation 18 dB
Polarization Dual-linear
Beamwidth Azimuth: 6 dB 95°
Elevation: 6 dB 25°
Electric downtilt 0°
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected
GPS Blue: receiving at least (4) GPS satellite signal
