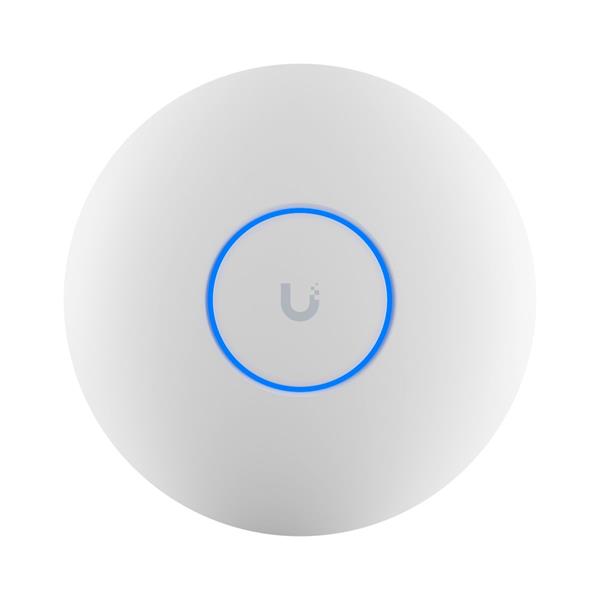

Ubiquiti Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range

Popis produktu:

Technical Specifications
Overview
Dimensions
O175.7 x 43 mm
(O6.9 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
5
Coverage Area
160 m2 (1,750 ft2)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting
Ceiling, Wall
(Plastic Mounting Plate included)
Power Method
PoE
Performance
MIMO
5 GHz
3 x 3 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW160)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
27 dBm
2.4 GHz
26 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
14W
Includes PoE Adapter
No
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
448 g (15.8 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 9.1.120 and later
Mobile App
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later

Stránky o produkte:

https://eu.store.ui.com/eu/en/category/wifi-flagship/products/u7-lr

Technické špecifikácie sa môžu meniť bez predošlého upozornenia. Obsah aktuálneho balenia sa môže líšiť v závislosti od dátumu predaja. Obrázky majú len informatívny charakter.
