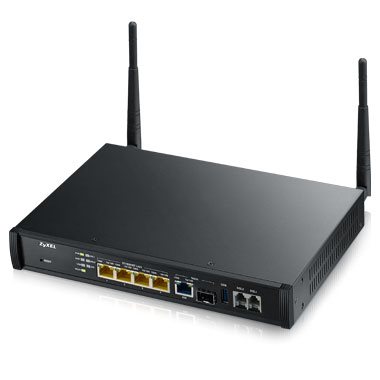

ZyXEL SBG3500 Small Business Gateway, VDSL2, 1x GbE WAN (RJ45/SFP) 4x GbE LAN, 1x USB 2.0, 802.11n 2x2 300Mbps, Wireless

Popis produktu:

System Specifications
High Availability WAN

   3 WAN interface (VDSL, Ethernet/SFP) options
   User configurable multi-WAN load balancing with one WAN for failover/fallback

VDSL Compliance

   G.993.1 VDSL, G.993.2 VDSL2 Annex A/B compliant, band plan 997, 998
   G.994.1 (G.hs) Handshake, G.997.1
   Support VDSL profiles up to 17a
   Packet Transfer Mode (PTM) 17a bonding
   Rate adaption
   Seamless Rate Adaption (SRA)
   INP: Up to 16 symbols
   G.INP, G.Vector
   PhyR configurable

ADSL Compliance

   G.992.1 (G.dmt), G.992.2 (G.lite) Annex A/B compliant
   G.992.3 (ADSL2), G.992.5 (ADSL2+) Annex A/B compliant
   Reach-Extended ADSL (RE ADSL)
   Seamless Rate Adaptation (SRA)
   PPP over ATM AAL5 (RFC2364)
   Support VC-based and LLC-based multiplexing
   ATM traffic shaping (CBR, VBR-rt/nrt, UBR)
   PhyR configurable

Ethernet/SFP WAN

   1 x GbE RJ-45 port
   1 GbE SFP port
   Ethernet WAN and SFP dual personality

Ethernet LAN

   4 x GbE RJ-45 ports
   N-way, automatic speed negotiation supported
   Auto-sensing, auto-detection MDI/MDIX

Bridge/Router

   Dynamic learning for up to 2014 MAC address
   PPPoE, PPPoA, IPoE, IPoA (RFC 1483)
   DHCP client/server/relay
   DHCP option 43/60/61/66/121/125/150
   DNS proxy, DDNS
   RIP I/RIP II supported
   Adjustable MTU size
   QoS classification route, queuing and scheduling
   Interface grouping
   IPv6 support

VPN

   Simple wizard support (Express wizard)
   Concurrent 20 IPSec VPN tunnels
   IPSec, PPTP and L2TP over IPSec VPN
   IPSec HW engine
   Algorithm: AES (128/192/256)/3DES/DES
   Authentication: SHA-1/MD5
   Auto reconnect VPN
   VPN failover/fallback

Firewall & Security

   Full cone NAT/Symmetric NAT/Restrict Cone NAT, NAT ALGs
   20,000 NAT sessions supported
   Configurable DMZ
   PPTP/IPSec/L2TP pass through
   PAP/CHAP/MS-CHAP v1 and v2
   Stateful packet inspection
   DoS/DDoS protection
   URL/key word filtering
   Access control: up to 256 ACL rules
   Directional ACL rule support

USB

   1 x USB 1.1/2.0 port
   FTP file sharing
   Supported file system: FAT16/32, EXT2/3
   Support mobile broadband dongle
   Support WWAN package update
   3G budget control

Wi-Fi

   IEEE 802.11n compliance, backward compatible with 802.11 b/g
   Dynamic auto channel selection
   WPS on/off configuration in Web GUI
   Multiple number of SSID: Up to 4
   Per-SSID VLAN binding
   WEP data encryption 64/128bit
   WPA/WPA-PSK with TKIP & AES security type
   WPA2/WPA2-PSK with TKIP & AES security type
   IEEE 802.1x (EAP-MD5, TLS and TTLS)
   32 MAC filter
   Client connection: A maximum of 32 clients simultaneously connect to the AP
   Adjustable WLAN output power (via CLI, XML)
   Web-based authentication

WLAN Management

   ZyXEL AP Controller (APC) Lite compliant
   Client RSSI threshold to prevent sticky clients
   Wireless Layer 2 isolation
   RADIUS authentication
   Wi-Fi Multimedia (WMM) wireless QoS
   CAPWAP discovery protocol
   ZyXEL Wireless Optimizer (ZWO) AP planning

System Management

   Two-tier log in
   Login privilege
   Dual image firmware protection
   Text based configuration (XML based)
   Support TR-069, TR-098, and TR-111
   SNMP v1, v2c
   Rom-D support
   Syslog
   User management (user data base/profile)

Hardware Specifications

   WAN interface:
   SBG3500-N: 2 x RJ-11 connectors for VDSL2/ADSL2+ over POTS
   SBG3500-NB: 1 x RJ-45 connector for VDSL2/ADSL2+ over ISDN
   1 x RJ-45 port for Gigabit Ethernet/SFP interface for connection to Fiber (dual personality)
   LAN interface: 4 x 10/100/1000M Auto MDI/MDIX RJ-45 ports
   USB: One type A, 2.0 host USB
   WLAN on/off button
   RS232 console port
   LED indicators: DSL1, DSL2, Ethernet WAN/Ethernet LAN (LED on connectors), power, internet, USB, SFP, WLAN
   Power input: 12 V DC, 2 A

Physical Specifications

   Item dimensions (WxDxH): 242 x 170 x 36 mm (9.53" x 6.69" x 1.42")
   Item weight: 1.19 kg (2.62 lb.)
   Packing dimensions (WxDxH): 343 x 209 x 75 mm (13.50" x 8.23" x 2.95")
   Packing weight: 1.93 kg (4.26 lb.)

Environmental Specifications

Operating Environment

   Temperature: 0°C to 40°C (32°F to 104°F)
   Humidity: 10% to 95% (Non-condensing)

Storage Environment

   Temperature: -30°C to 70°C (-22°F to 158°F)
   Humidity: 10% to 95% (Non-condensing)
   MTBF (hrs): 300,000

Certification

CE

   EMC/RF
   Safety
   ErP
   RoHS 2
